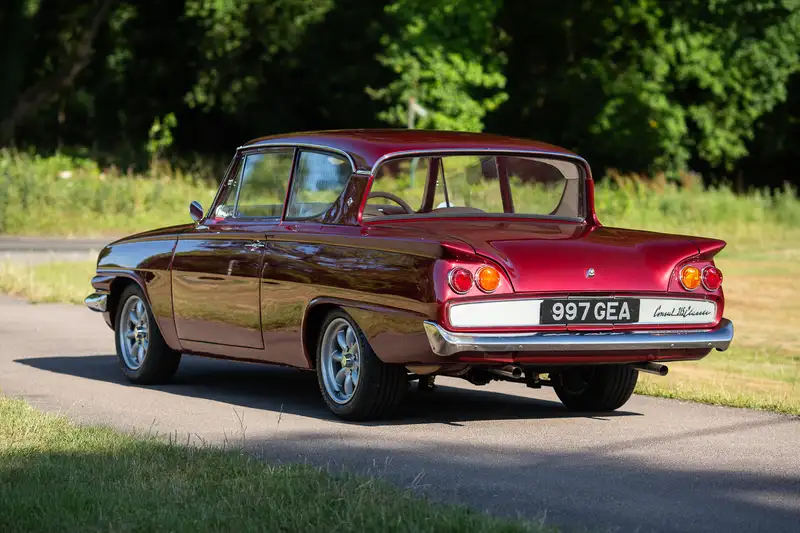

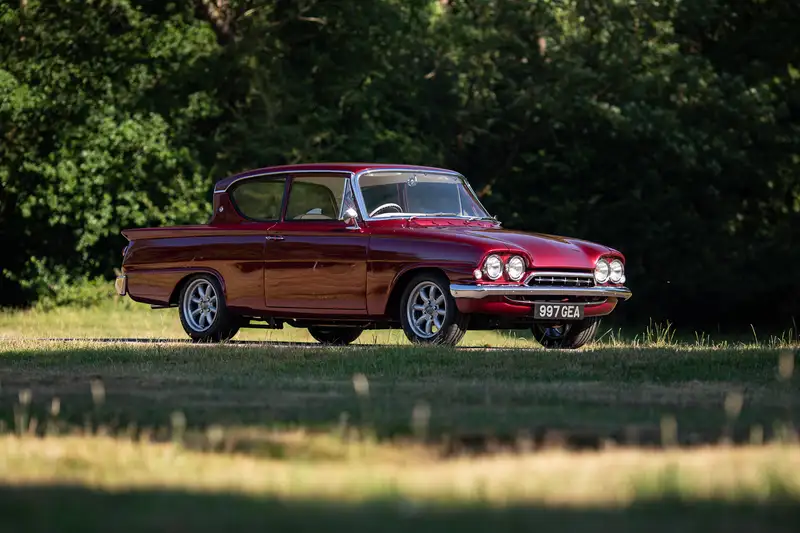

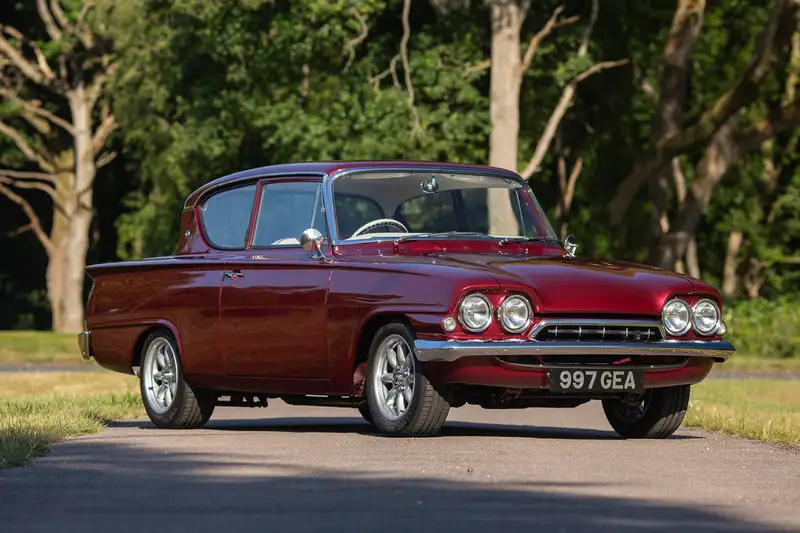

1962 Ford Consul Classic V8 RestoMod

Lot Number: 639

1962 Ford Consul Classic V8 RestoMod

A sensationally modified concours-winner, extremely well developed, built with meticulous attention to detail and finished to an exceptional standard.

Sold for: £14,625

LIVE AUCTION: This lot was auctioned on Sunday 24th August, 2025 at 11.00am BST at The Wing, Silverstone Circuit, NN12 8TN

BODY COLOUR
Cranberry Metallic
DRIVE
RHD
REG NUMBER
997 GEA
ODOMETER READING
61000 Miles

SUMMARY

A sensationally modified concours-winner, extremely well developed, built with meticulous attention to detail and finished to an exceptional standard.

DESCRIPTION

High quality original two-door car stripped to a bare shell and new metalwork fitted wherever needed. New firewall, transmission tunnel, strengthened chassis rails and strut braces

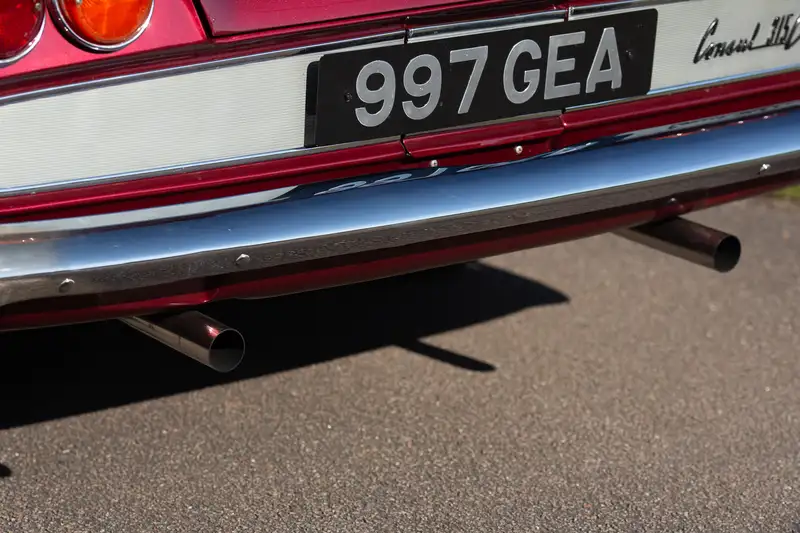

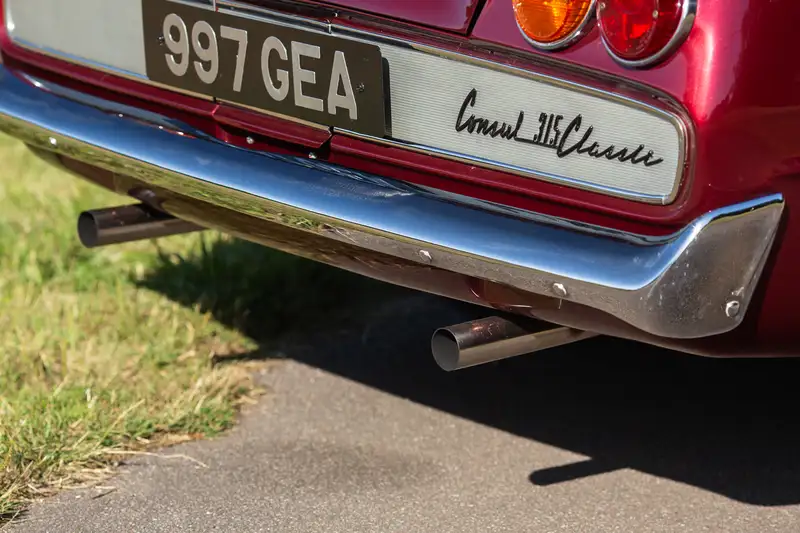

Fitted with a fully rebuilt TVR Tuscan 4.5-litre Rover-based V8, Stage 2 heads, fast-road cam, forged pistons, Edelbrock manifold, 500CFM carb and Mallory distributor generating 240bhp and 250ft/lb peak torque. Bespoke SS exhaust
Power is transmitted through a Toyota Supra Turbo 5-speed gearbox with a sports shift and an uprated hydraulic clutch through a custom propshaft to a 4HA-type live rear axle with plate LSD
Modified Ford Escort crossmember and rack and pinion steering. Capri Mk2 adjustable 2.25" coil-overs. Fully adjustable front geometry. 4-pot Wilwood calipers on the front with 10" drums at the rear

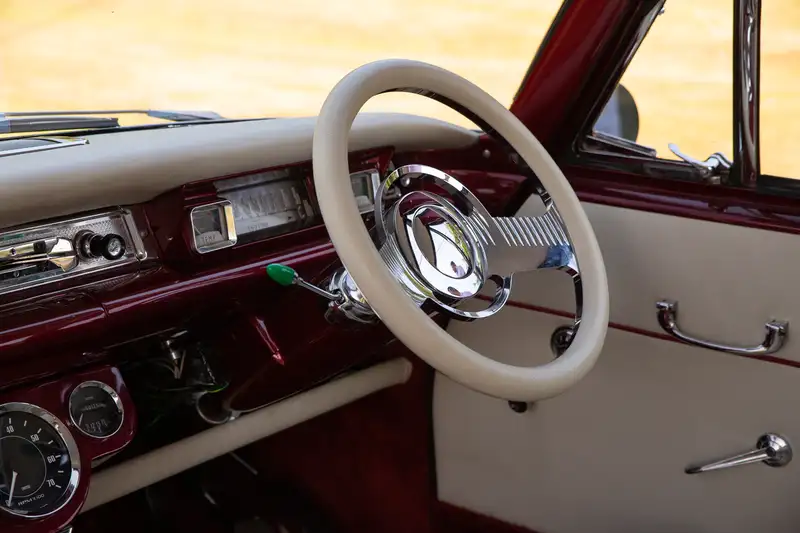

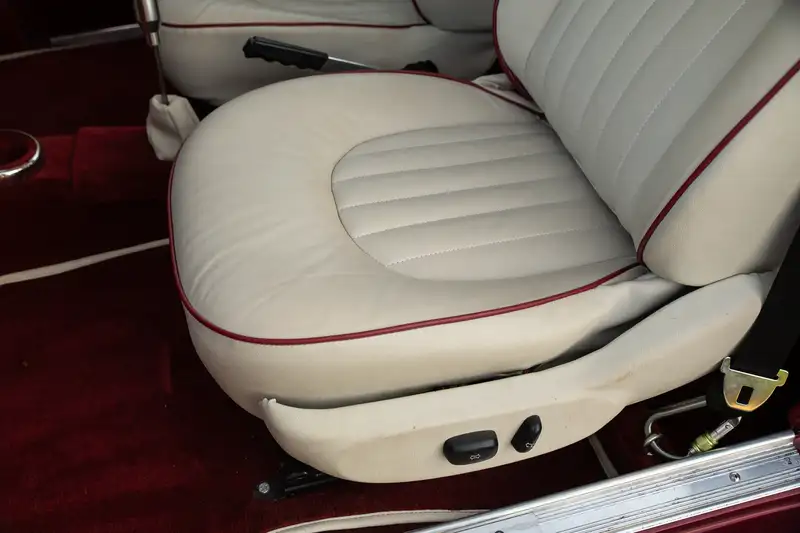

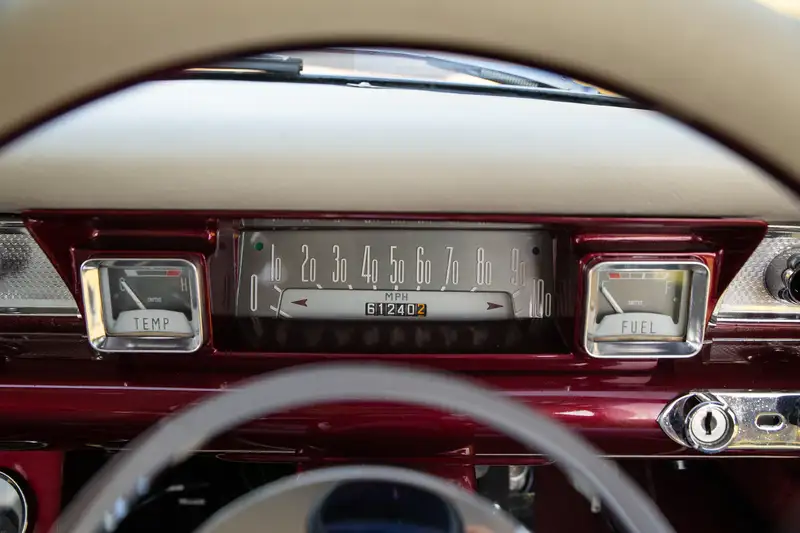

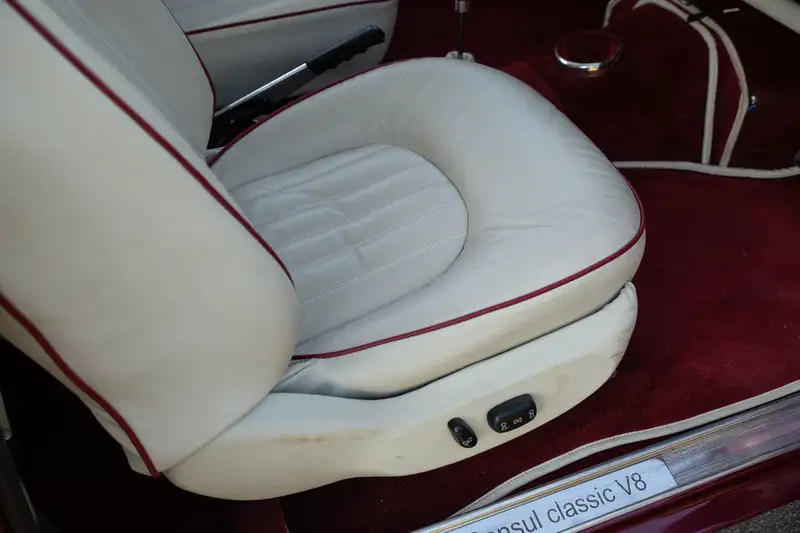

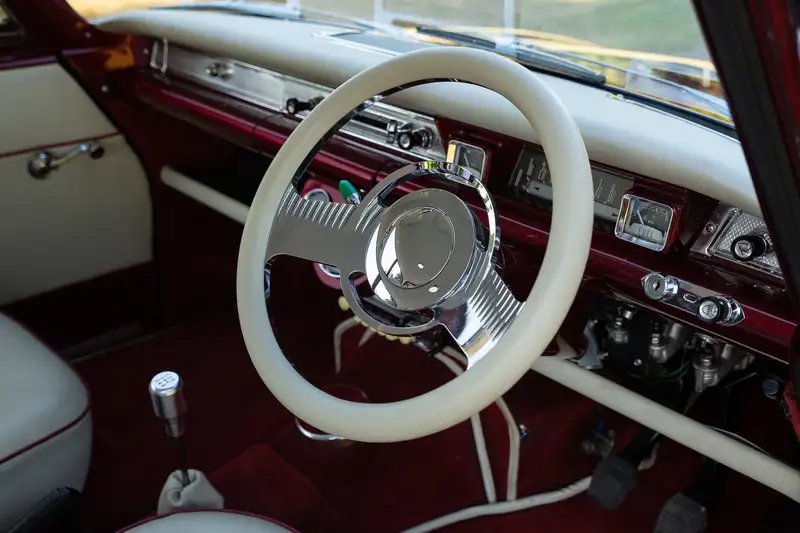

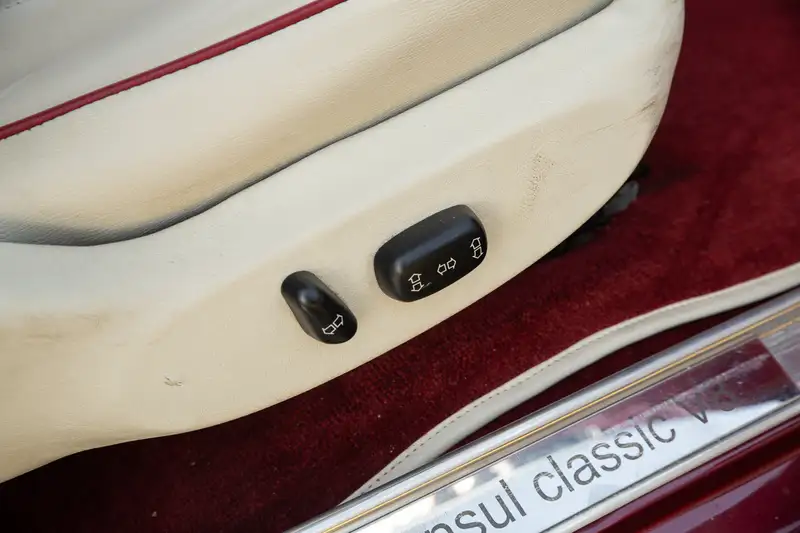

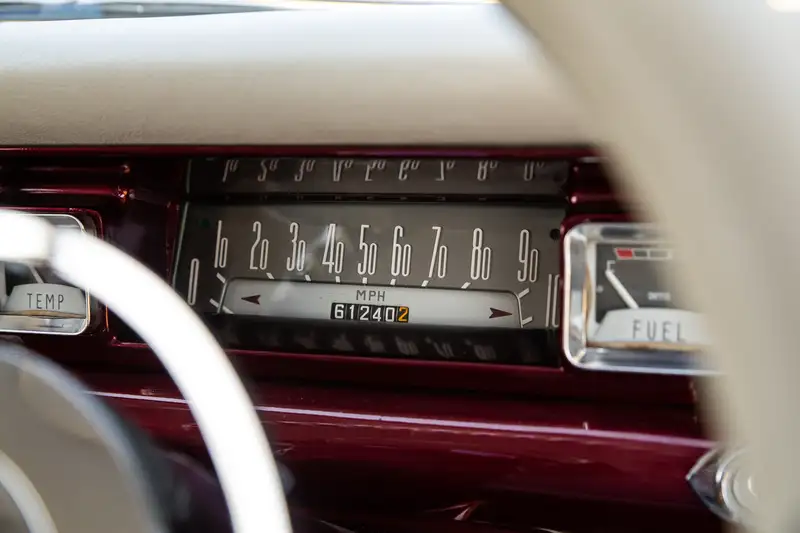

Exquisitely trimmed interior, period look radio/MP3 player, Capri GT-style instrument panel, heater, electrically adjustable seats, push button start and central locking

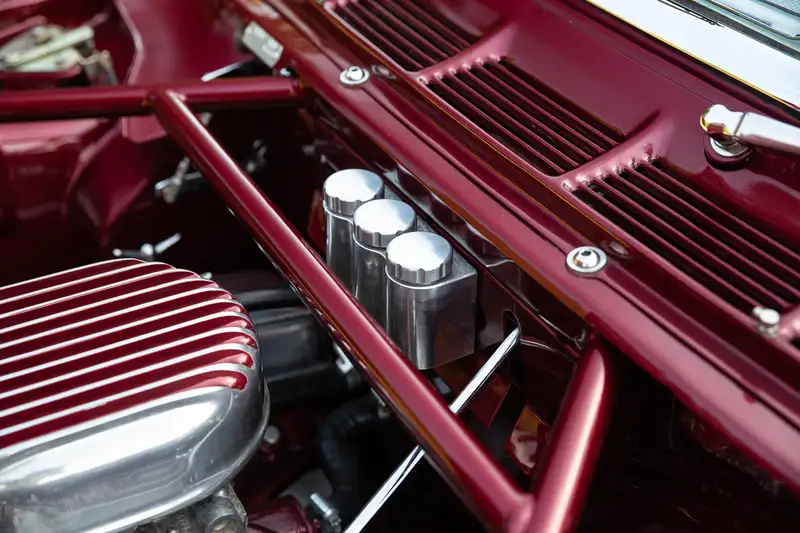

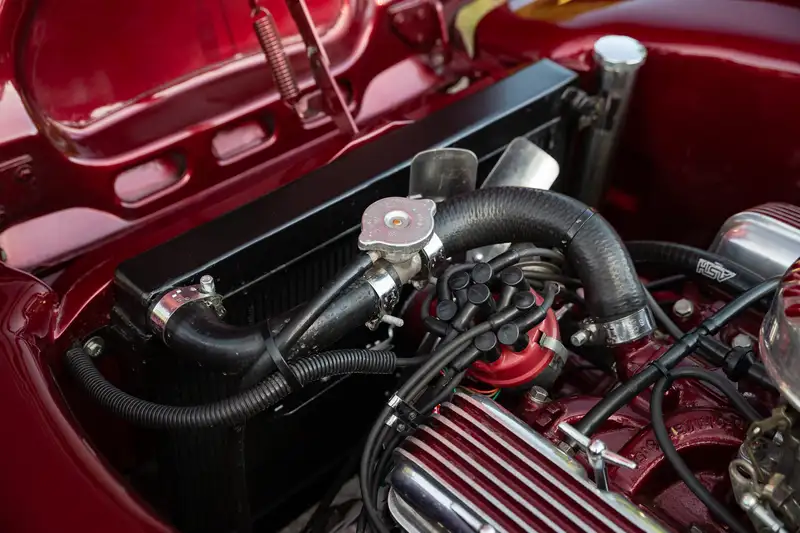

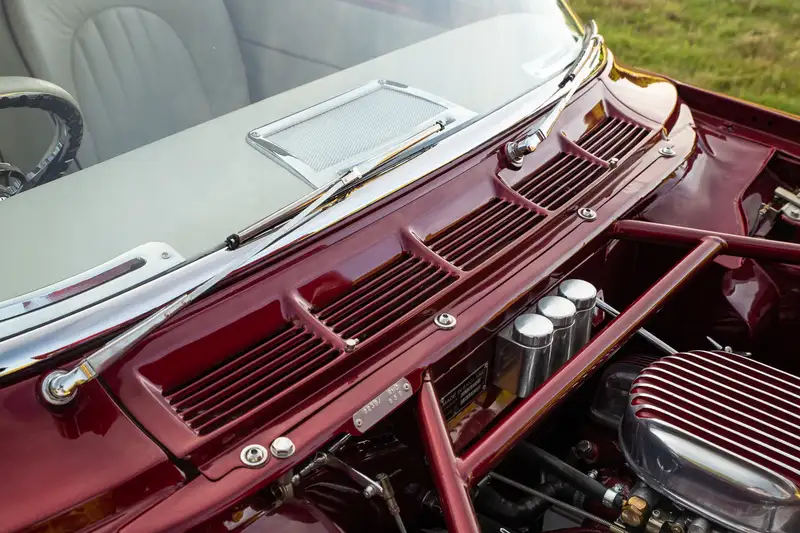

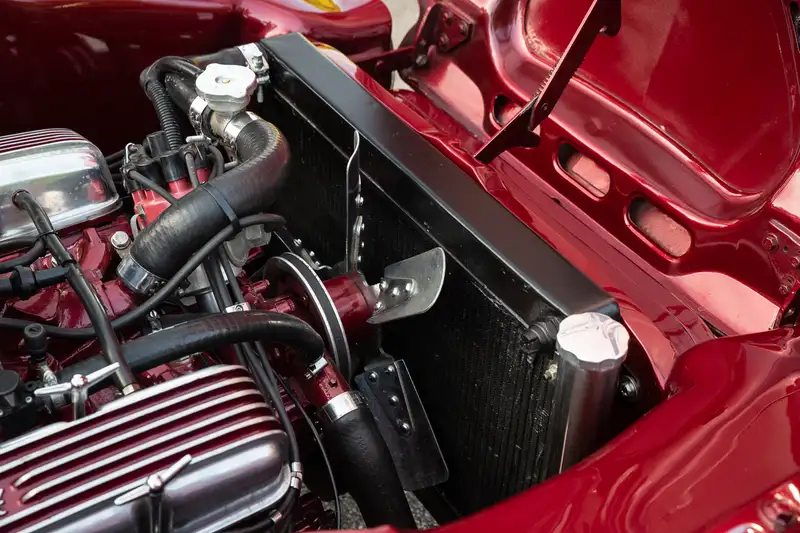

The engine bay is finished to the same mirror-like standard as the outside and underside of the car
Winner of many Concours d'Elegance trophies which will accompany the car to the sale
A huge file of documentation supports the work done and subsequent maintenance, including its current MOT and V5C
'This is a fast, thoroughly reliable and proven concours customised car, which generates immense interest and affection wherever it goes'

SPECIFICATION

Lot Number: 639
Make: FORD
Model: CONSUL CLASSIC
Variant: V8 Restomod
Registration Number: 997 GEA

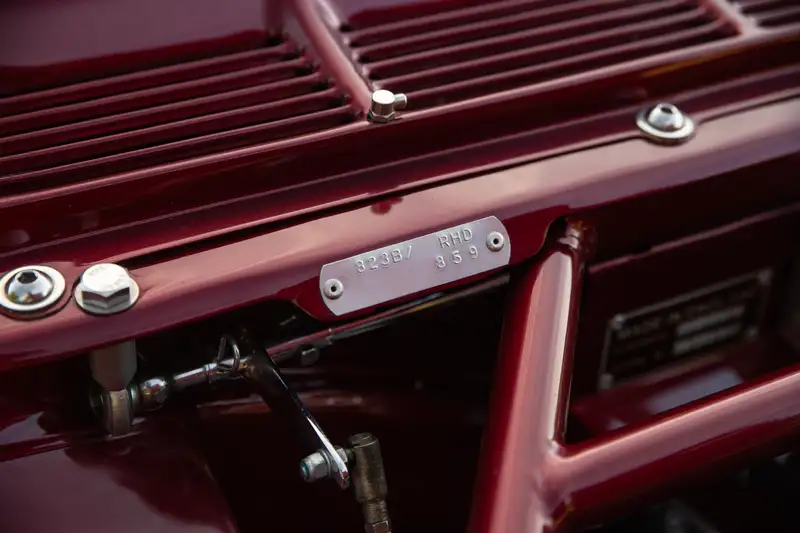

Chassis Number: 109E59402
Transmission: Manual
Body Colour: Cranberry Metallic

GALLERY

114

SPECIALIST

Gary Dunne
Car Specialist
07740 946796
gary@iconicauctioneers.com

For further information regarding this lot please contact Gary.

Email Gary
Telephone Gary
WhatsApp Gary

SHARE THIS LOT

SEE IT IN ACTION

SCORE:

124 / 135

Exterior

Bodywork:

Glass:

Paint:

Chrome:

Trim:

Remarks

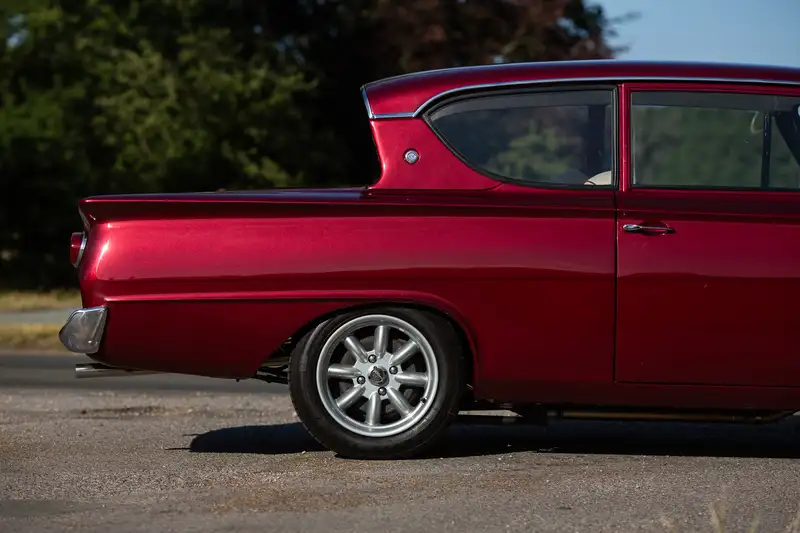

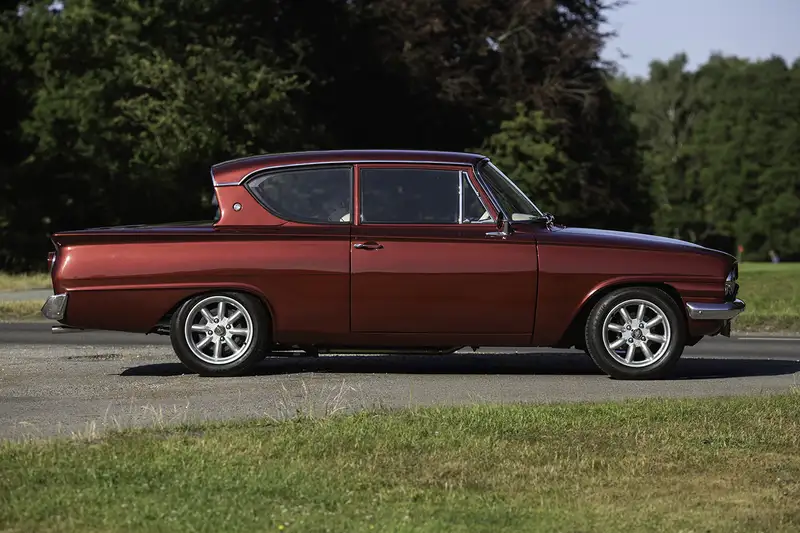

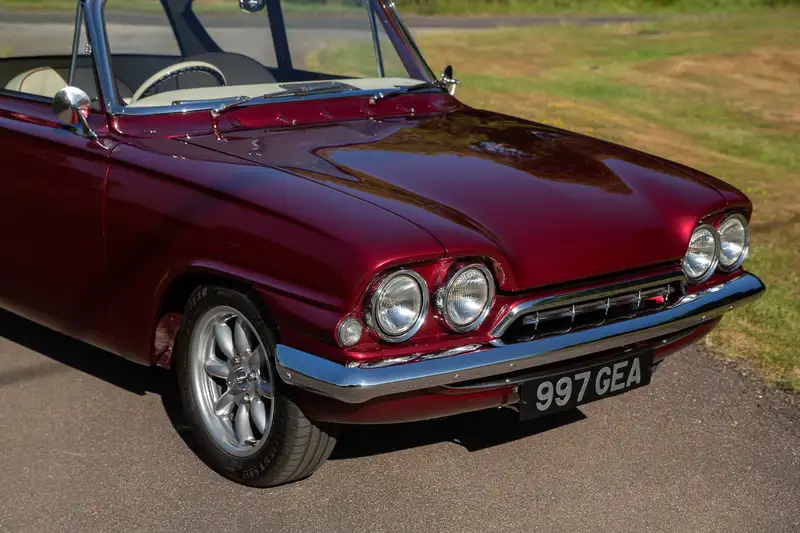

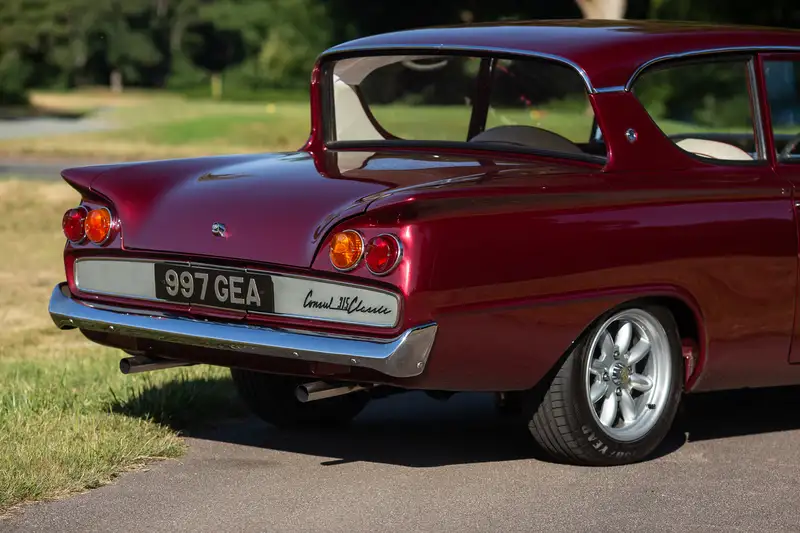

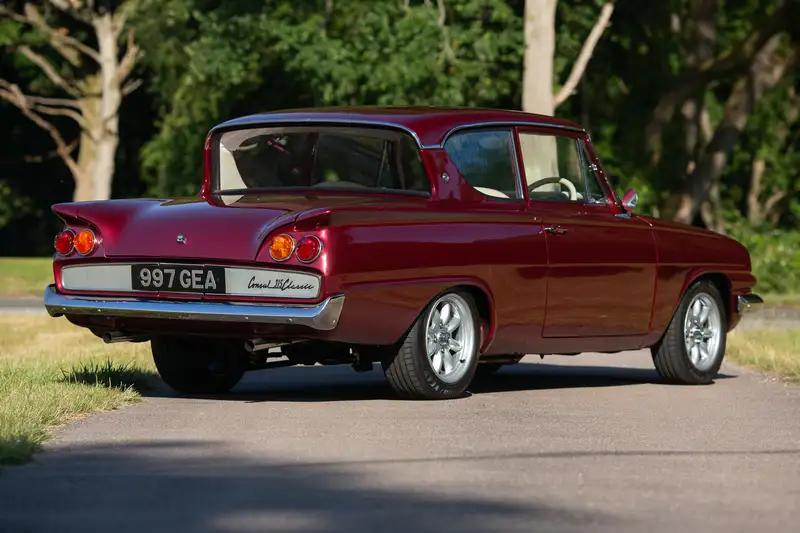

A high quality original car was stripped to a bare shell and new metalwork fitted wherever needed to ensure it was entirely rust free. A new firewall, and transmission tunnel as well as strengthening of the chassis rails and strut braces have been added to increase the torsional strength of the chassis.

Interior

Door-Cards:

Carpets:

Seating:

Headlining:

Dashboard:

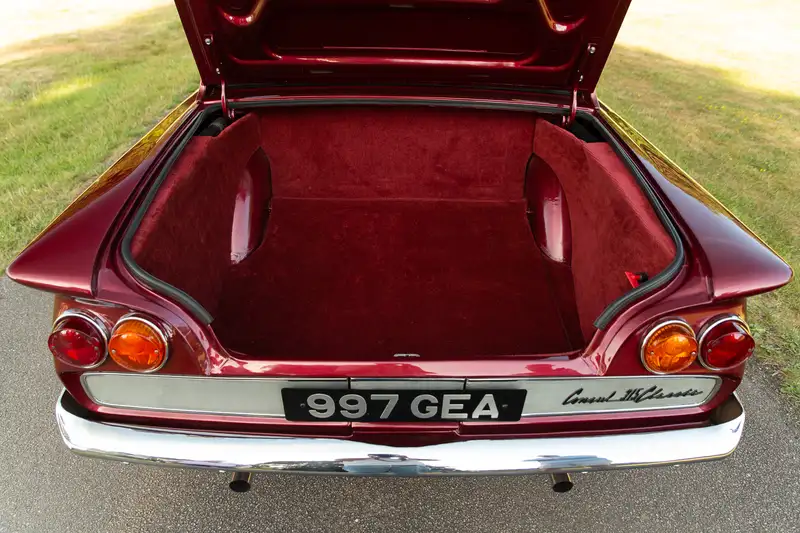

Boot:

Remarks

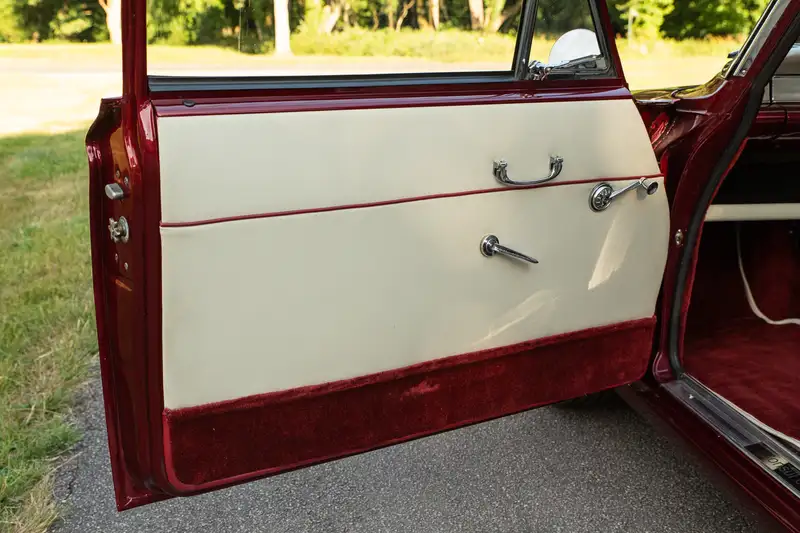

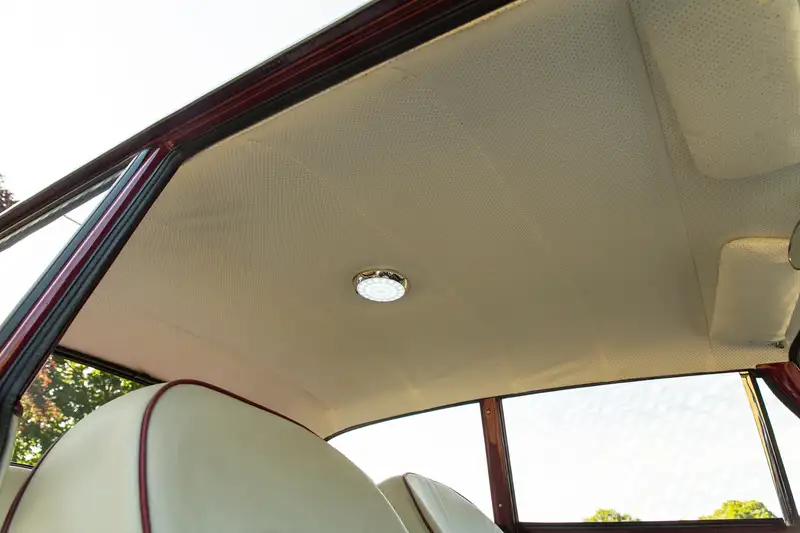

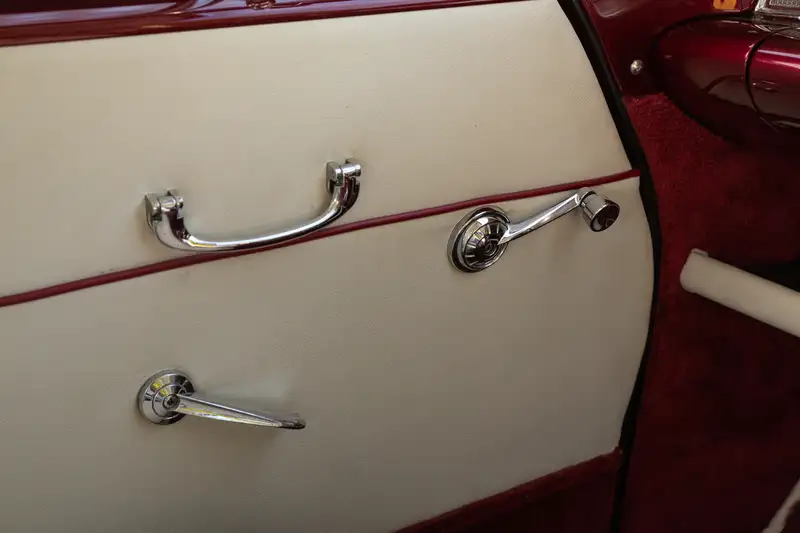

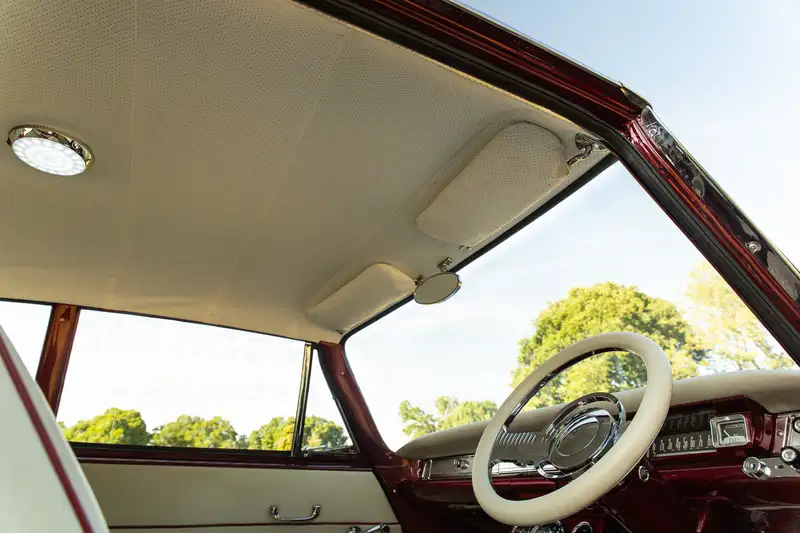

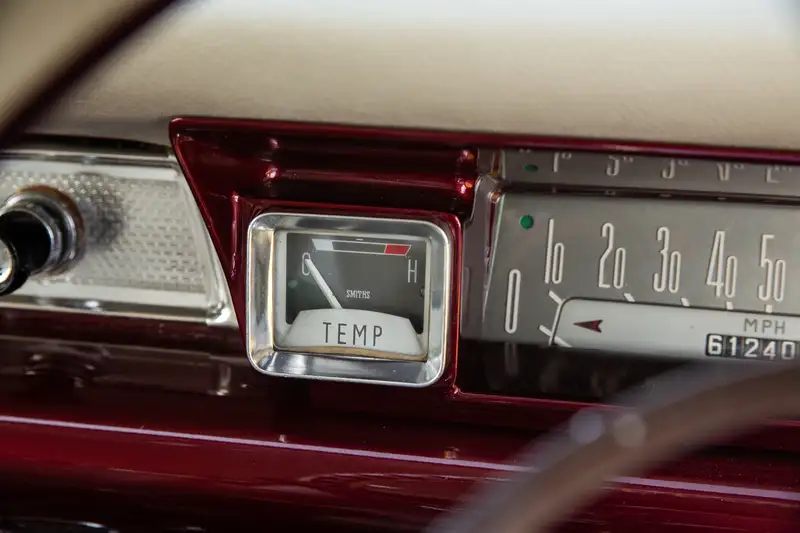

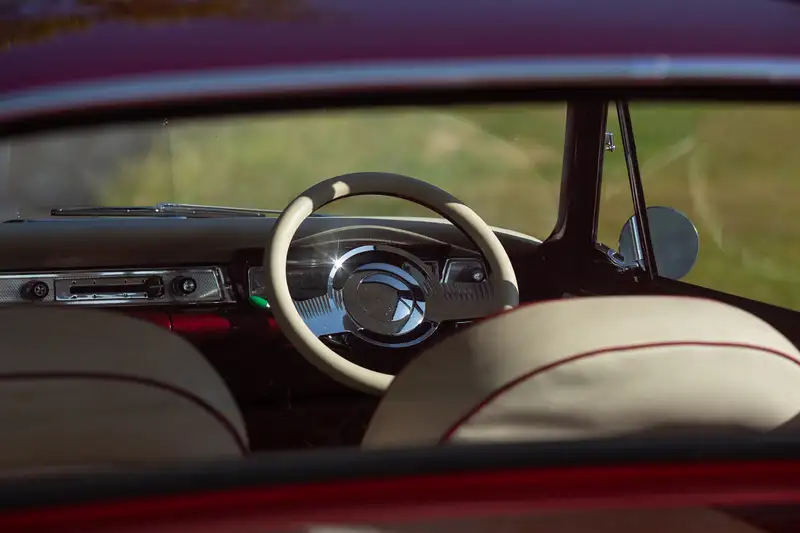

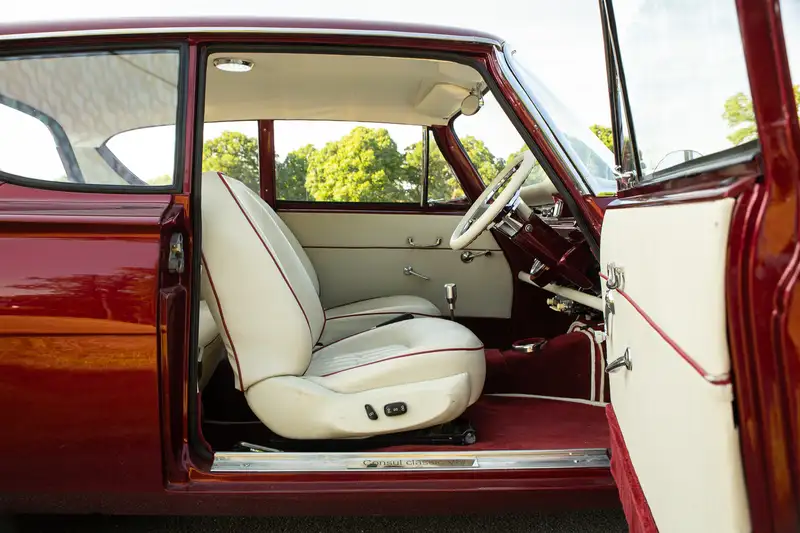

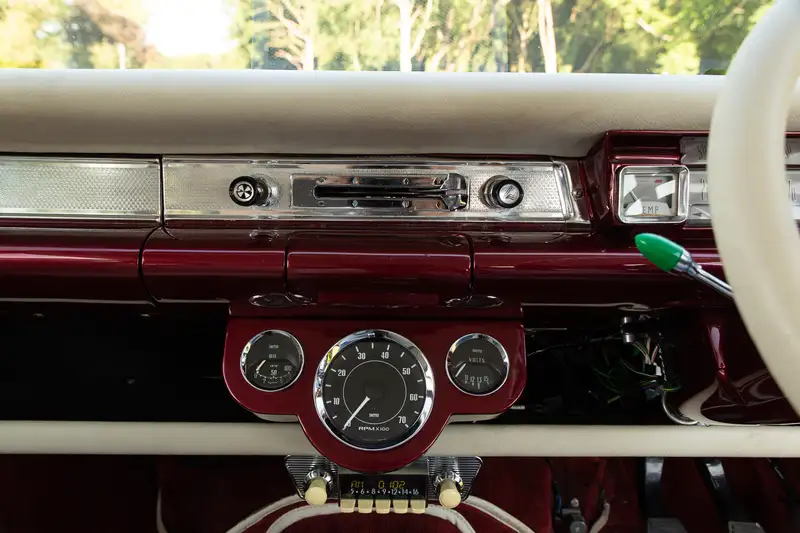

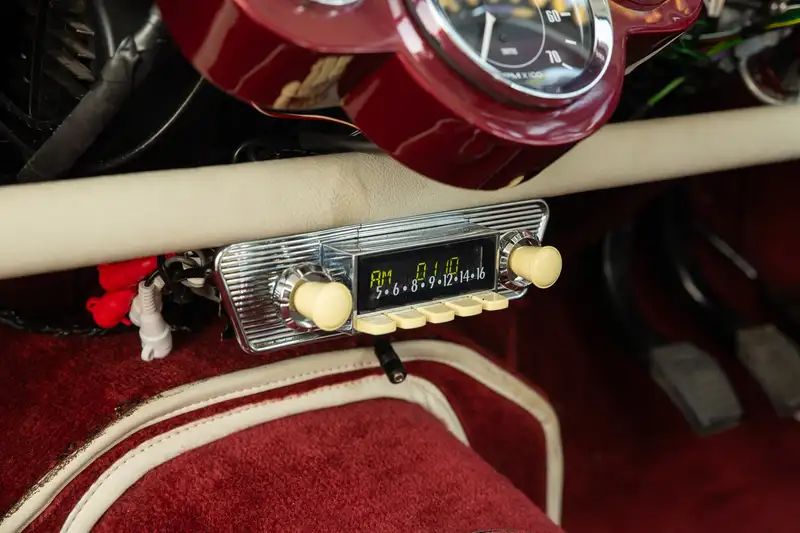

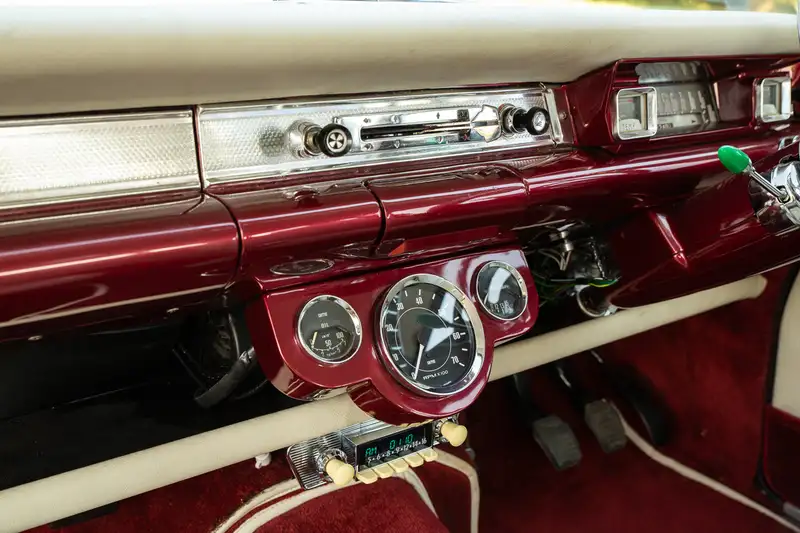

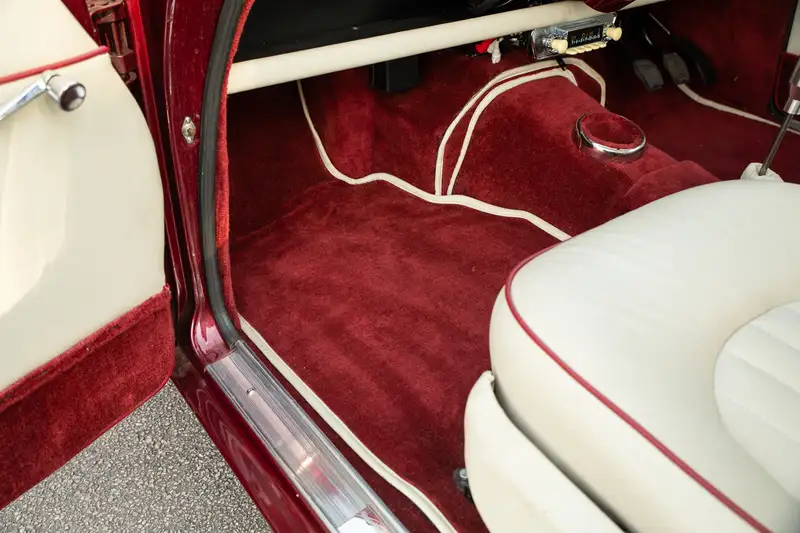

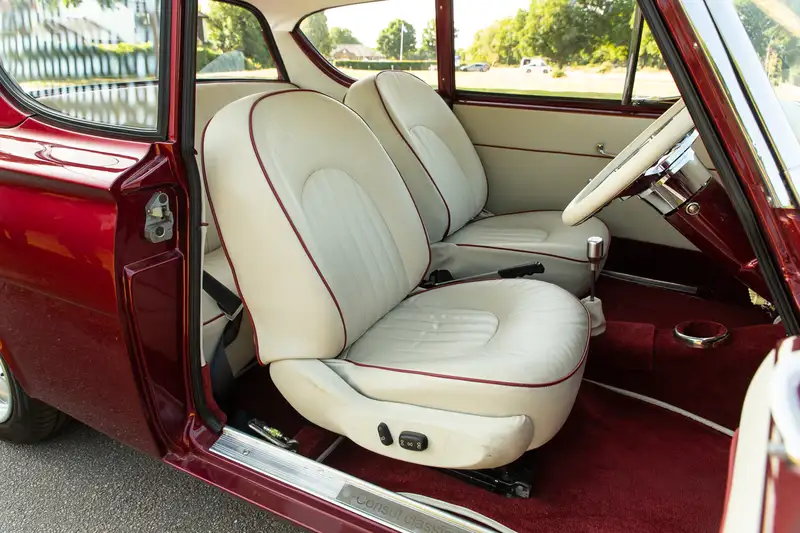

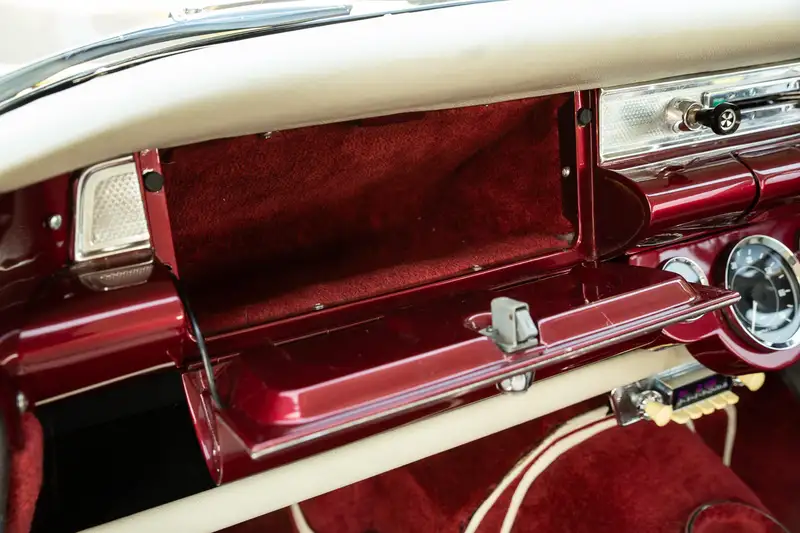

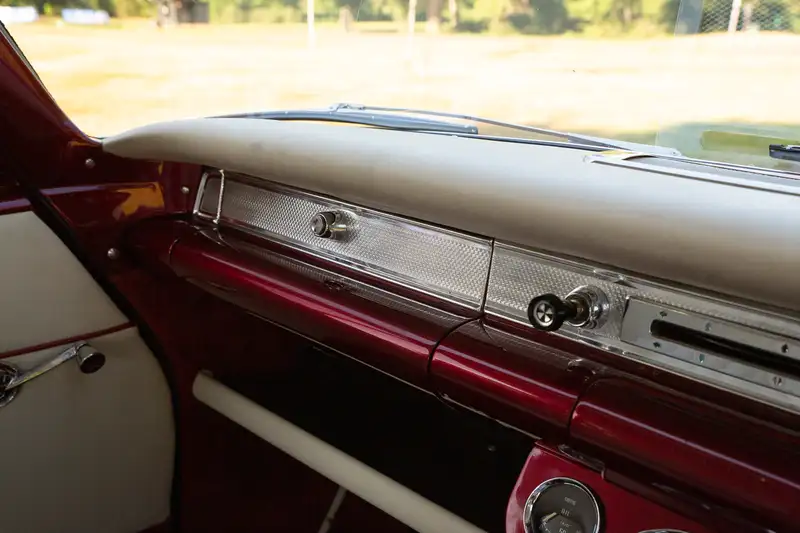

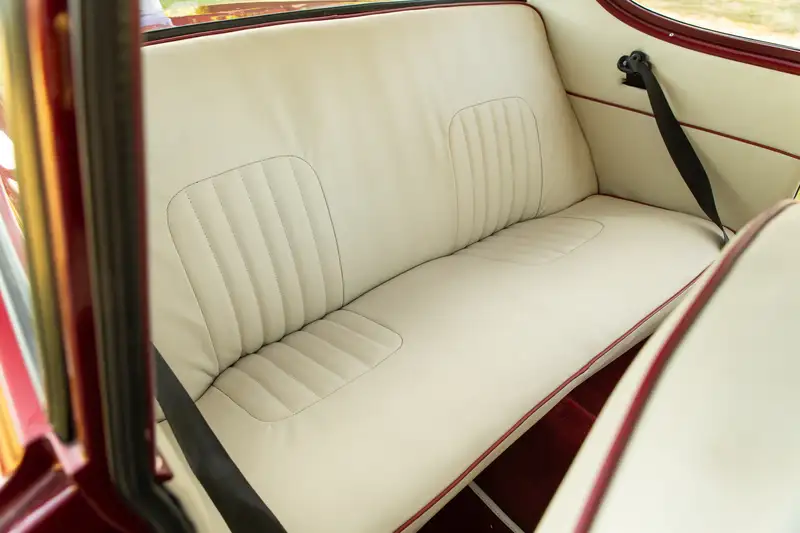

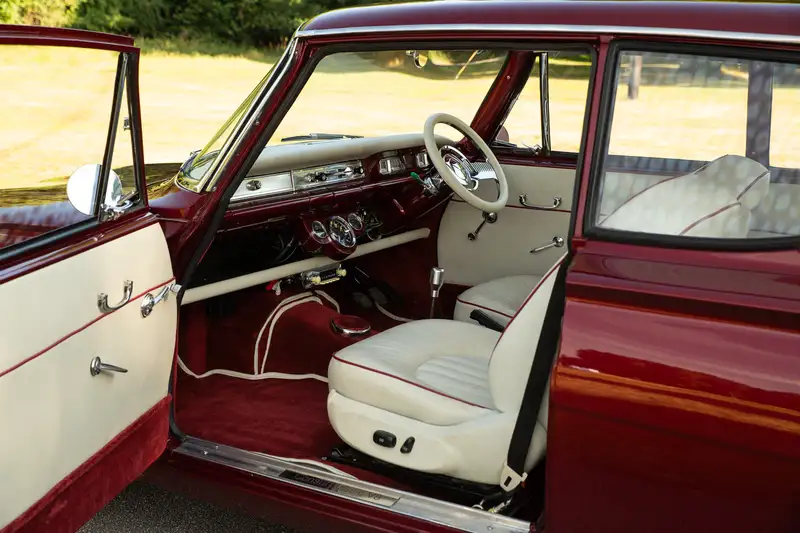

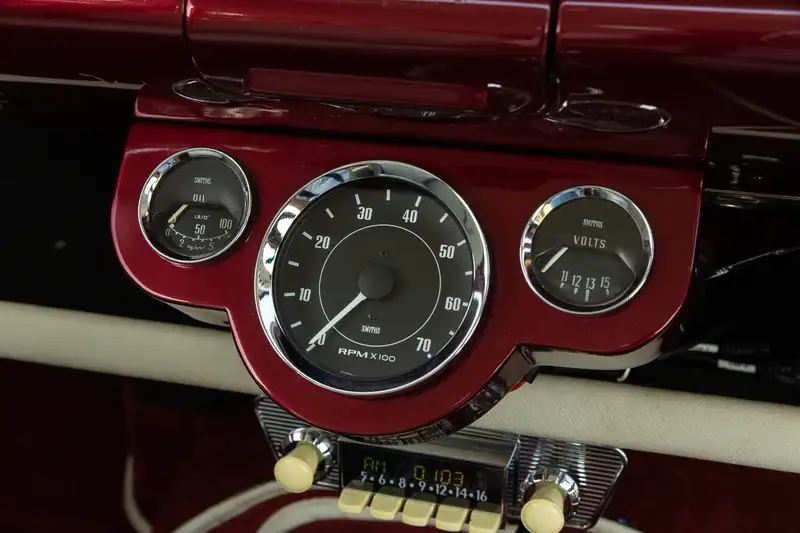

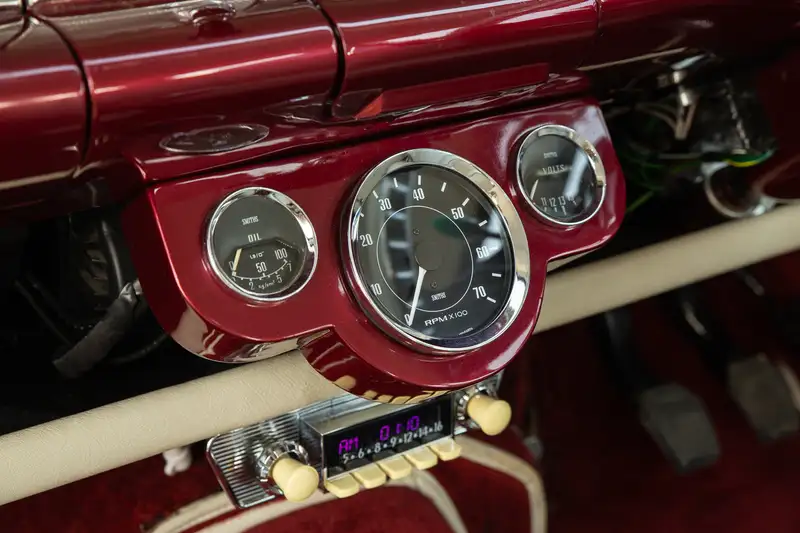

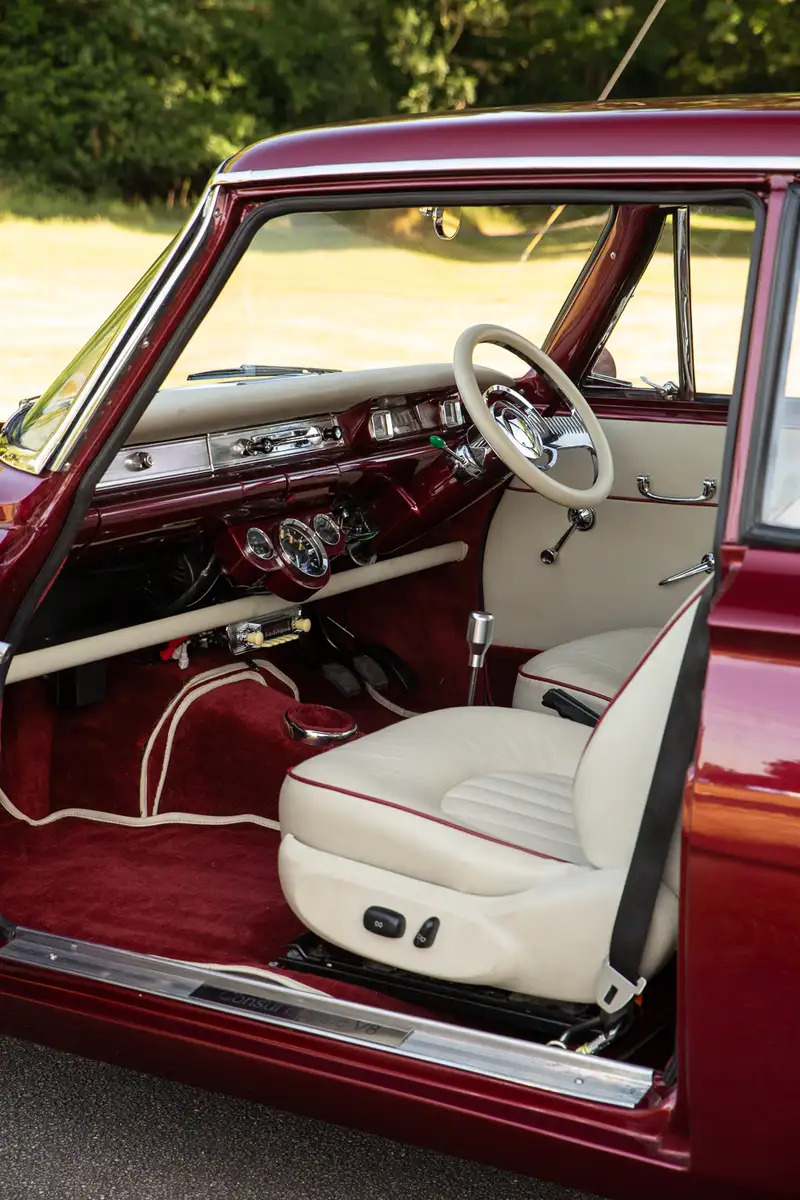

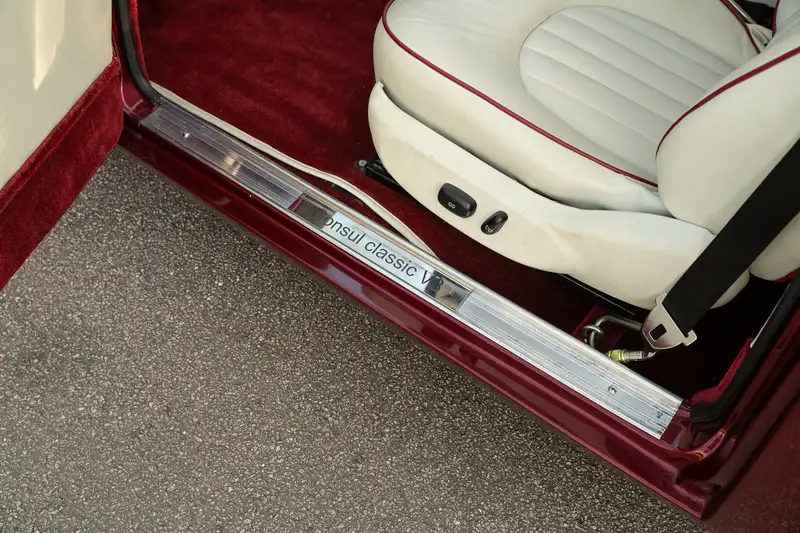

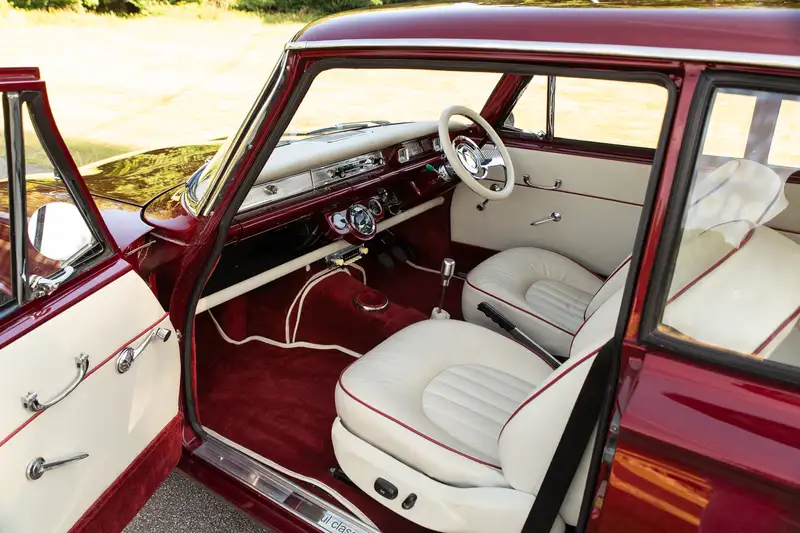

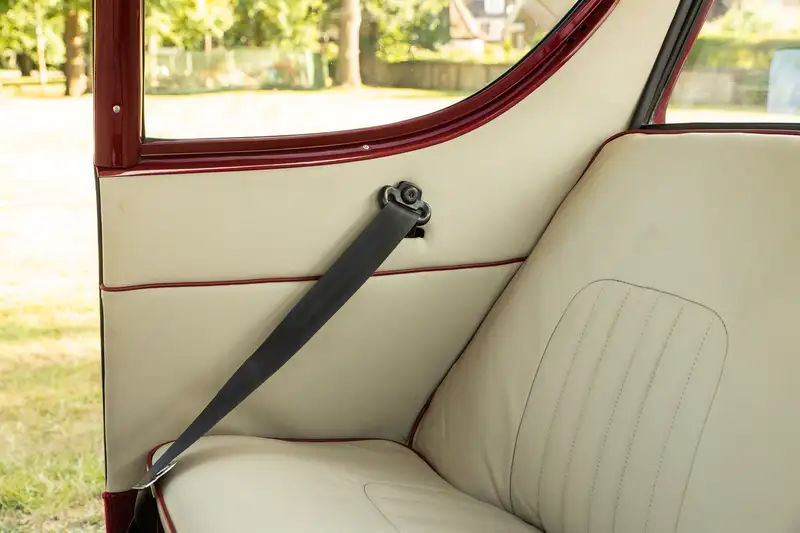

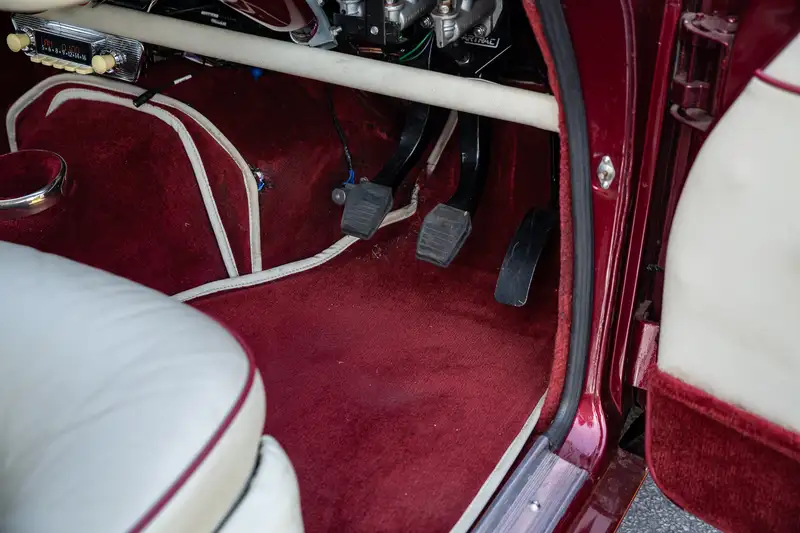

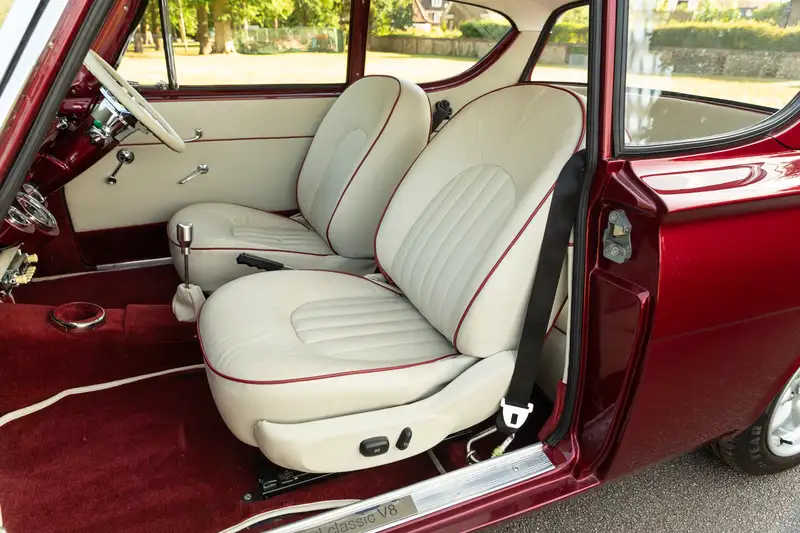

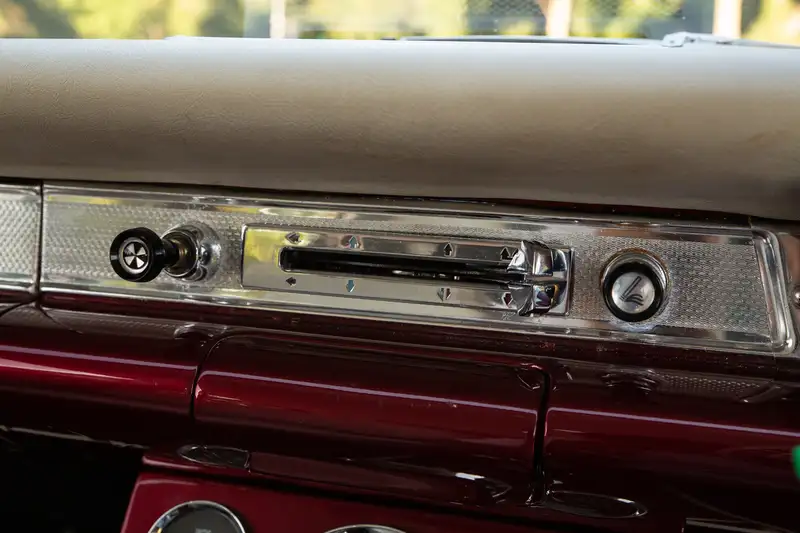

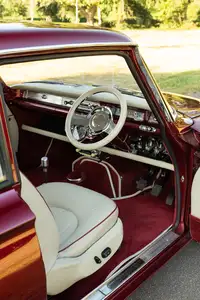

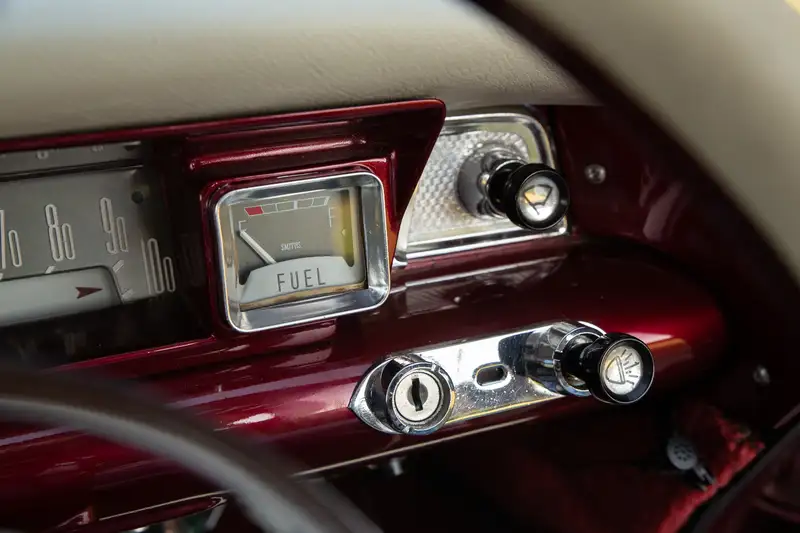

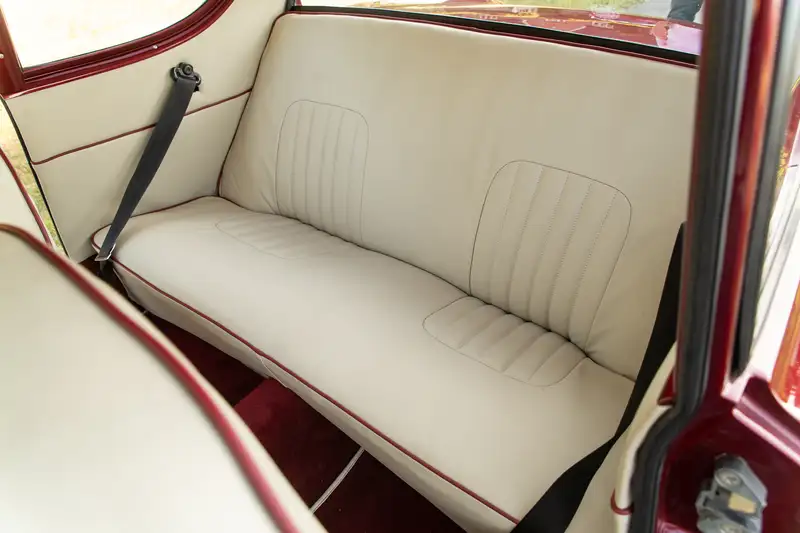

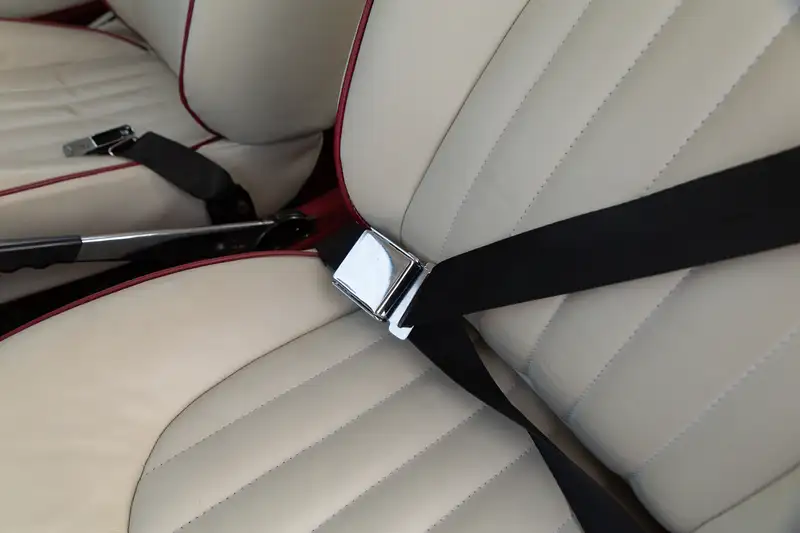

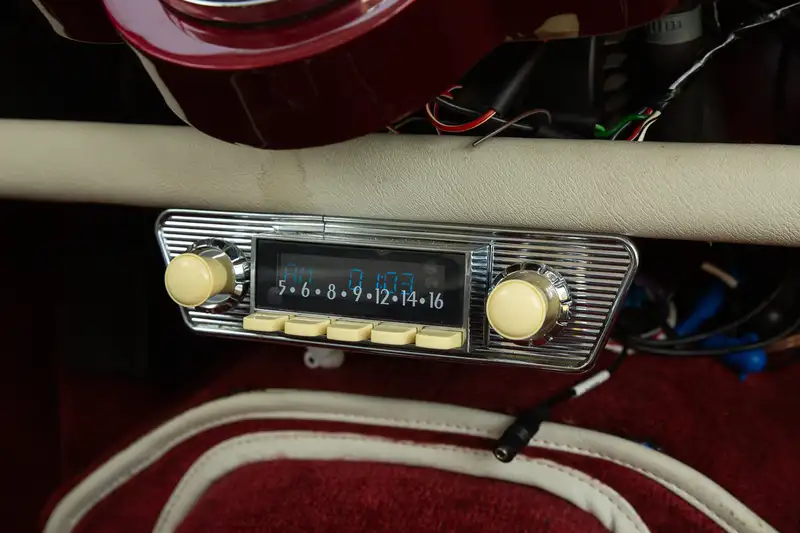

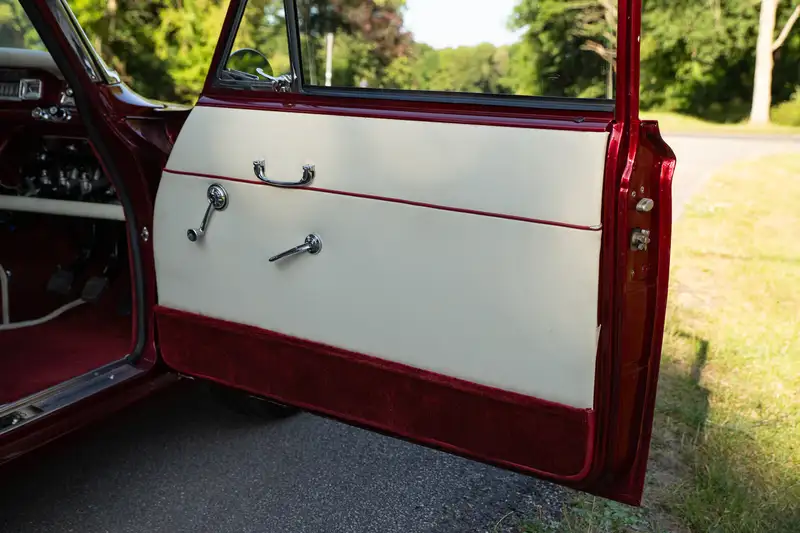

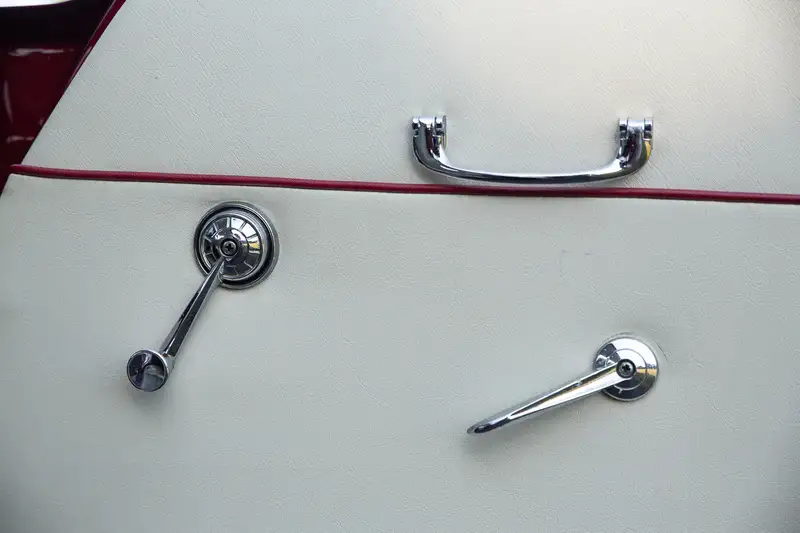

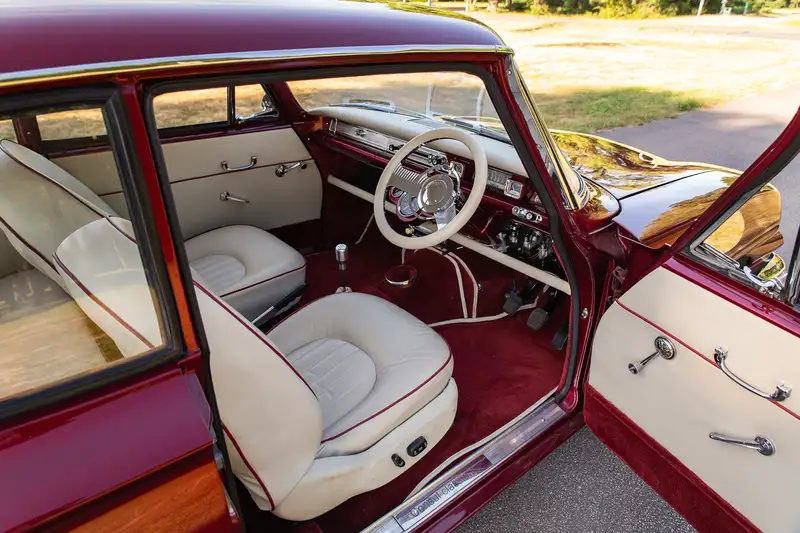

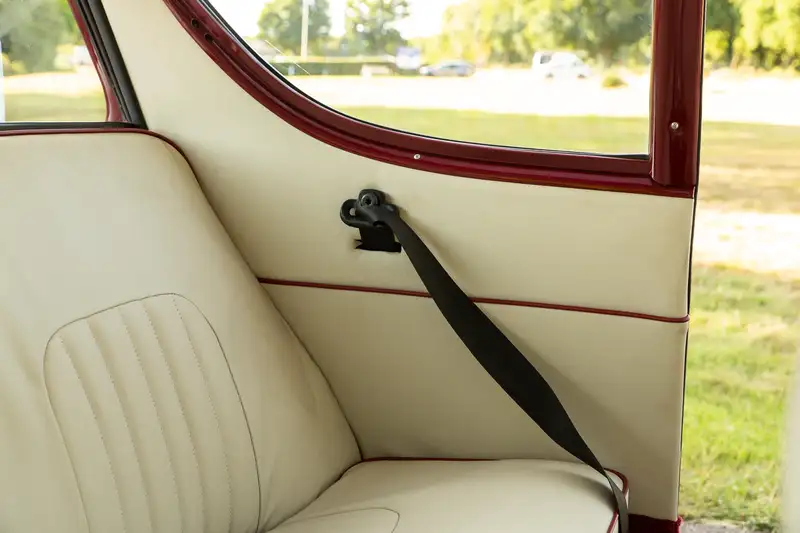

The interior is exquisitely trimmed, with an expensive period look radio/ MP3 player, and additional instrumentation is housed in a Capri GT style panel. The interior has been fully heat insulated and sound proofed beneath the carpets, giving the car a surprisingly high level of refinement

Engine

Components:

Appearance:

Starting:

Running:

Remarks

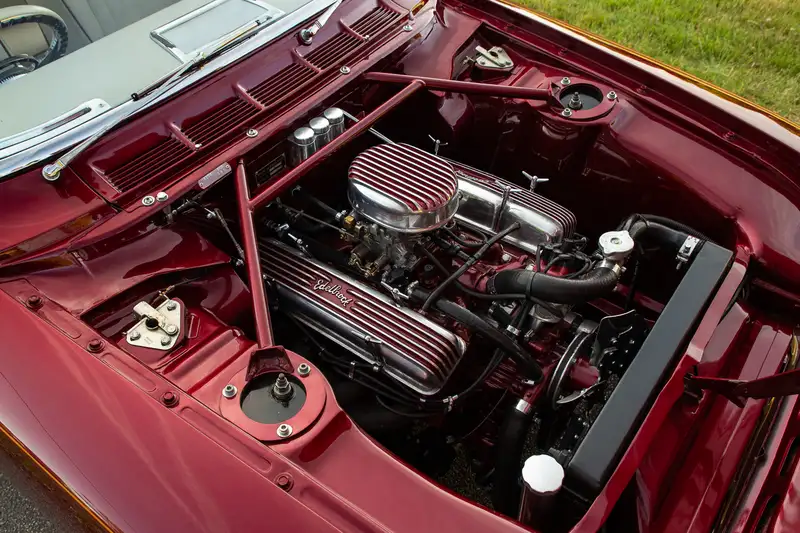

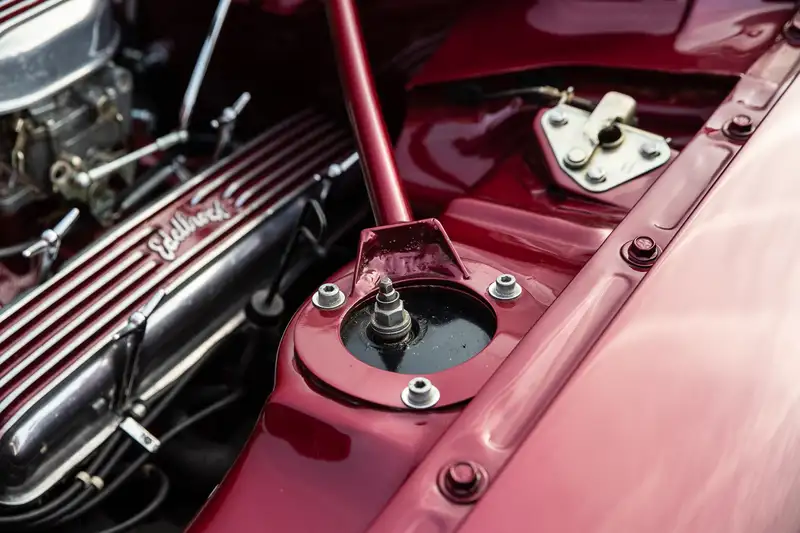

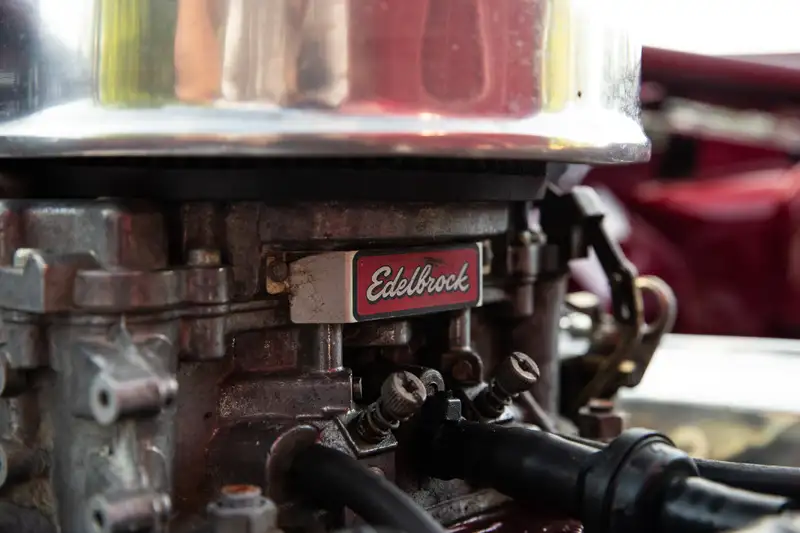

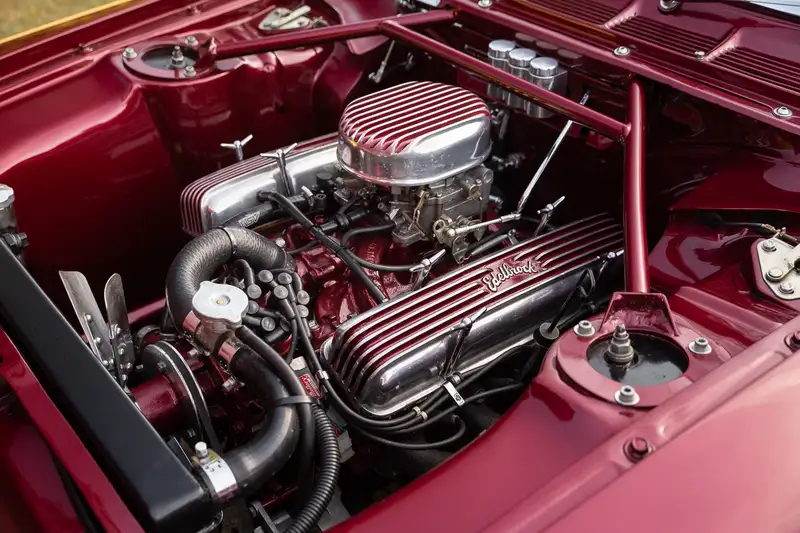

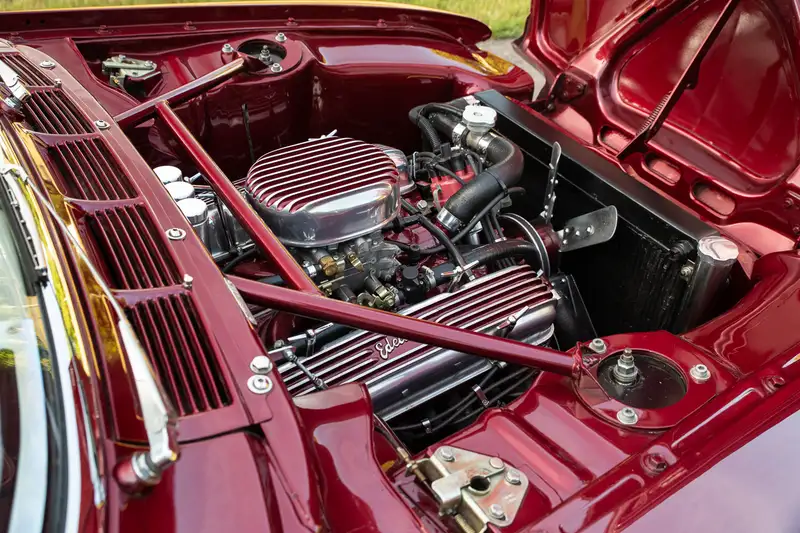

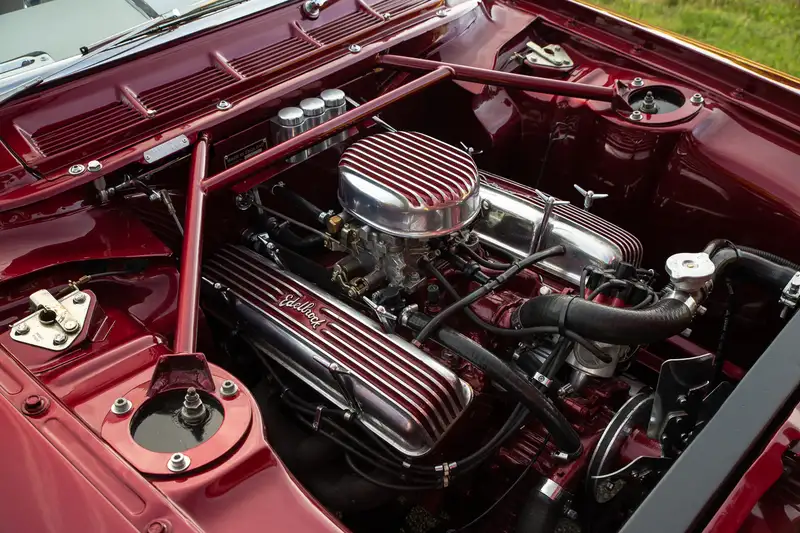

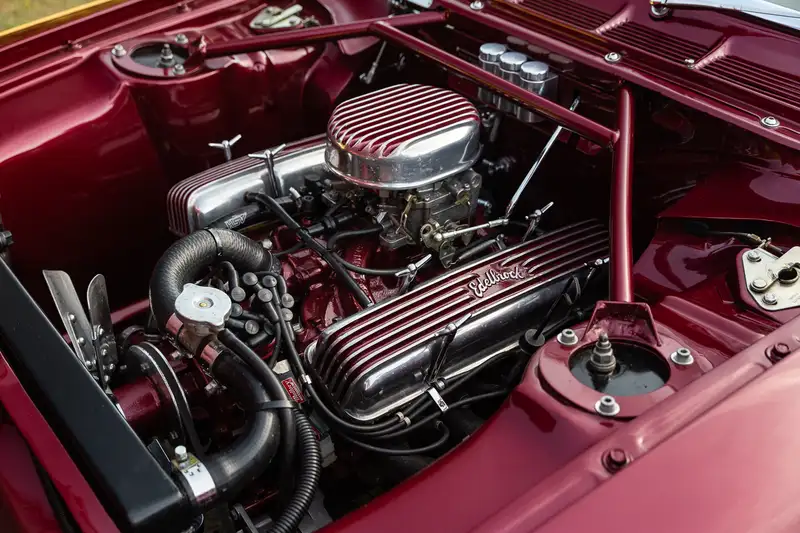

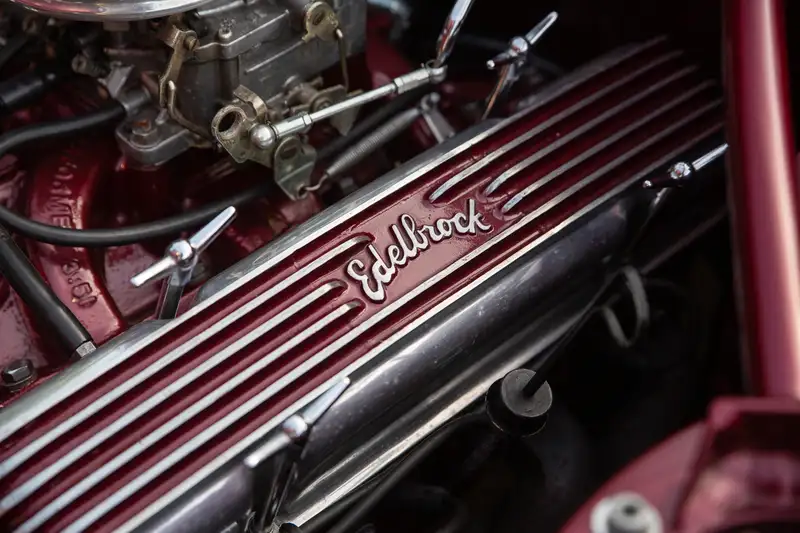

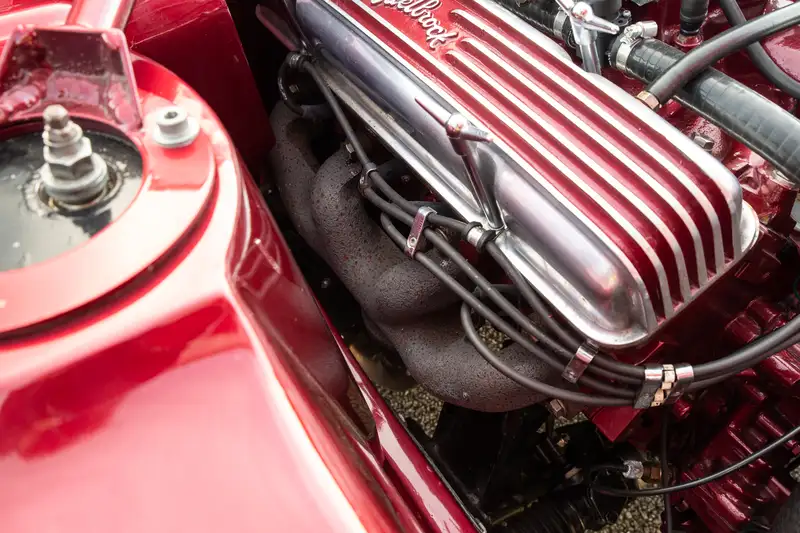

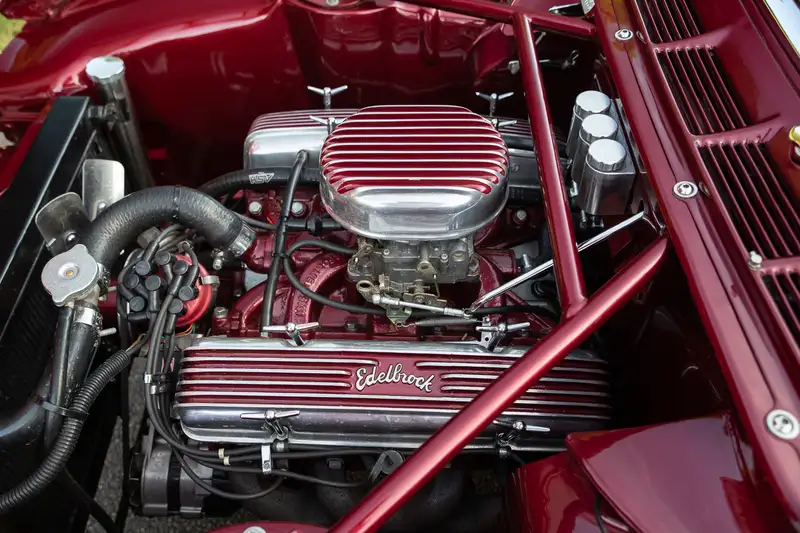

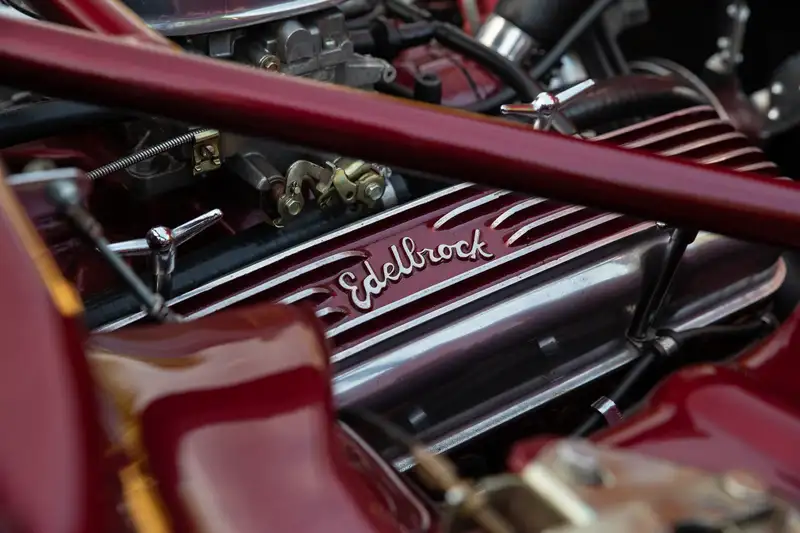

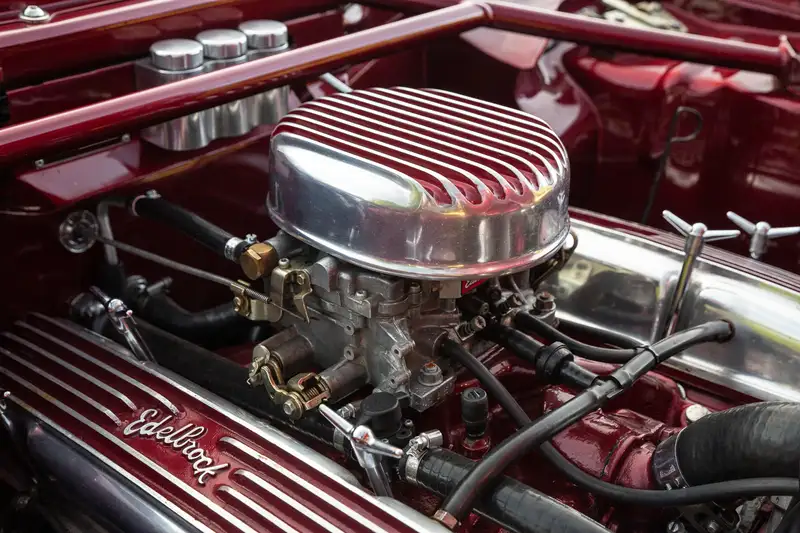

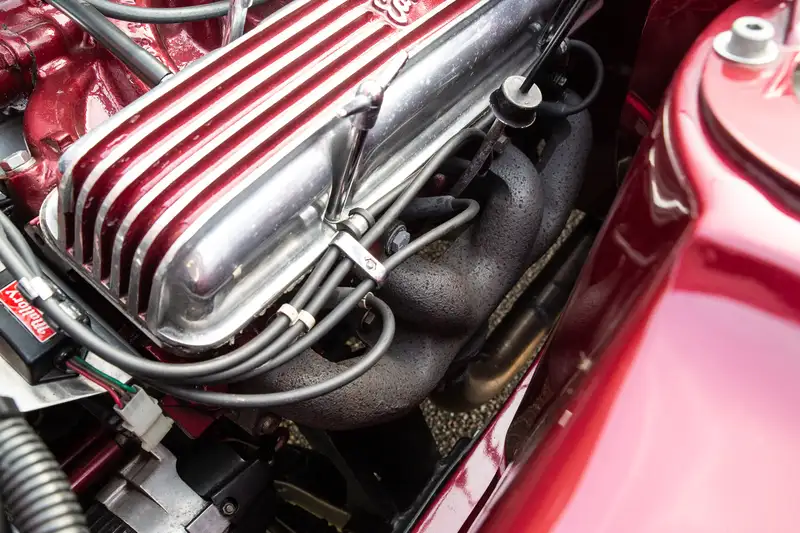

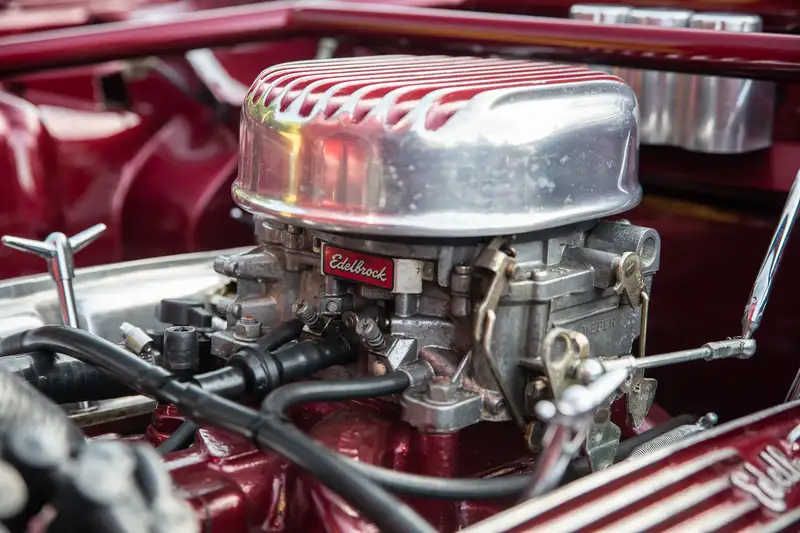

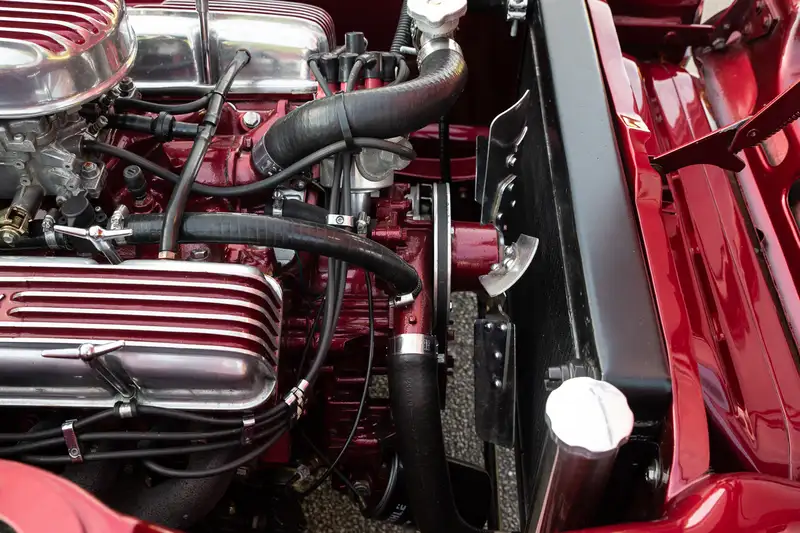

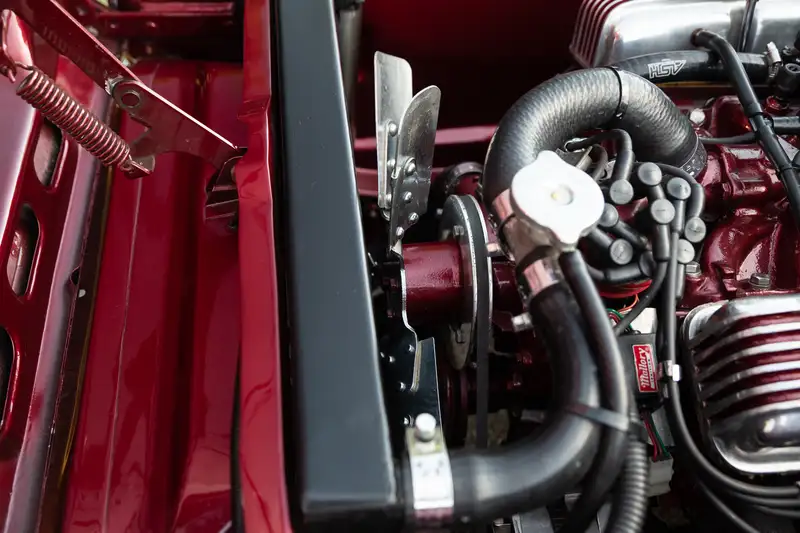

Fitted with a fully rebuilt TVR Tuscan 4.5 litre Rover based V8, fitted with stage 2 heads, fast road camshaft, forged pistons, Edelbrock manifold and 500CFM carb and Mallory distributor . This provides an easy 240bhp and 250 ft lb peak torque as evidenced by rolling road data.

Transmission

Gears:

Clutch:

Drive-Shaft:

Remarks

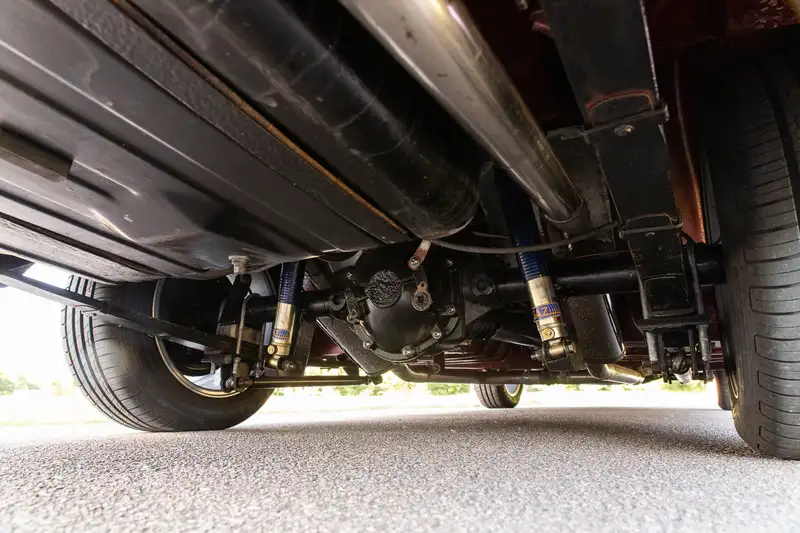

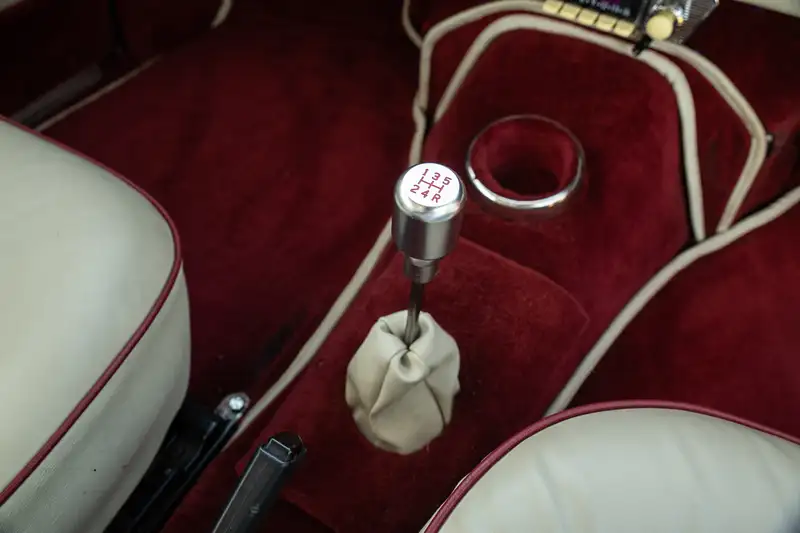

Power is transmitted through a Toyota Supra Turbo 5 speed gearbox, with a sports shift and an uprated hydraulic clutch. This connects via a custom propshaft to a 4HA type live rear axle with plate type LSD . The axle is located with turreted adjustable telescopic dampers and rose jointed anti tramp bars. All this gives 27mph per 1000 rpm in 5th gear and easy cruising.

Running Gear

Axles:

Chassis:

Suspension:

Bearings:

Brakes:

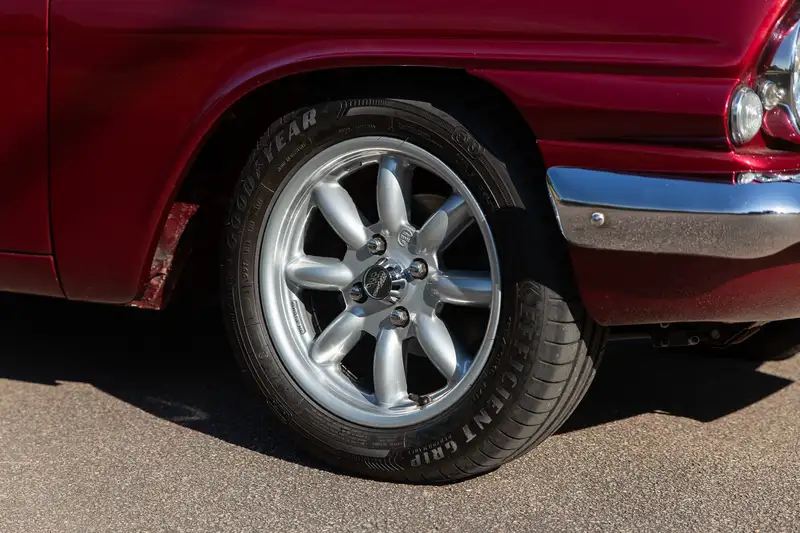

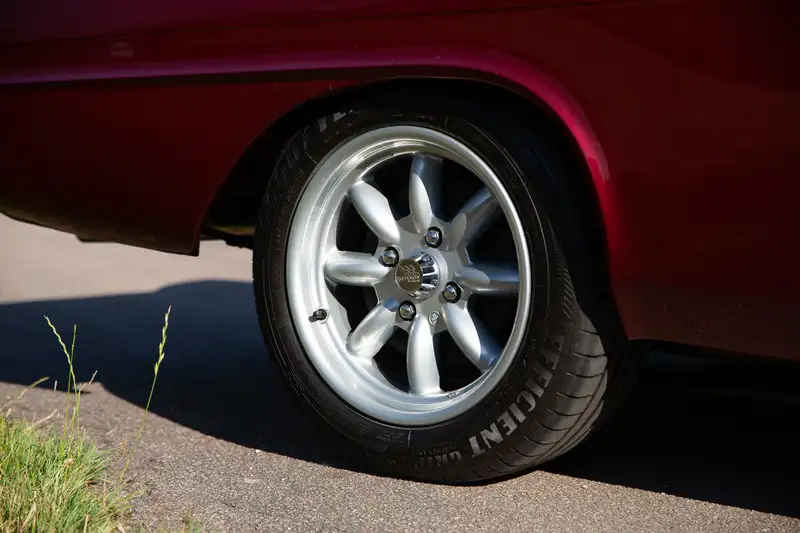

Wheels & Tyres:

Remarks

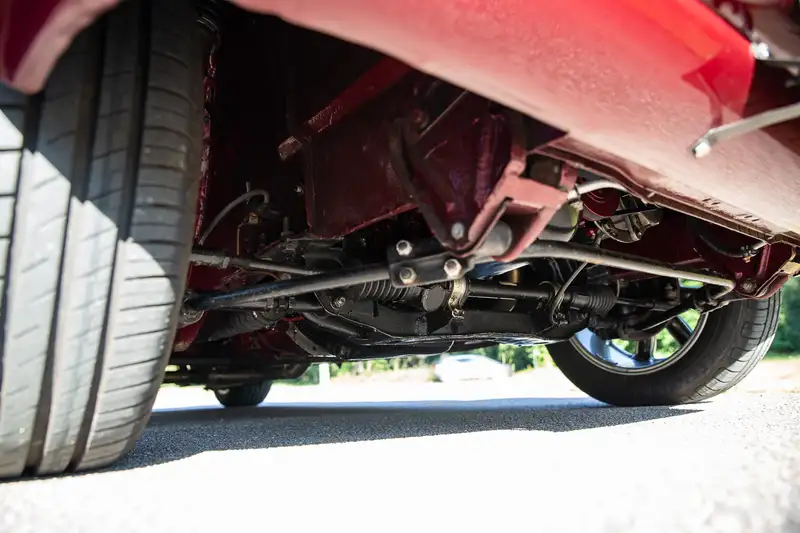

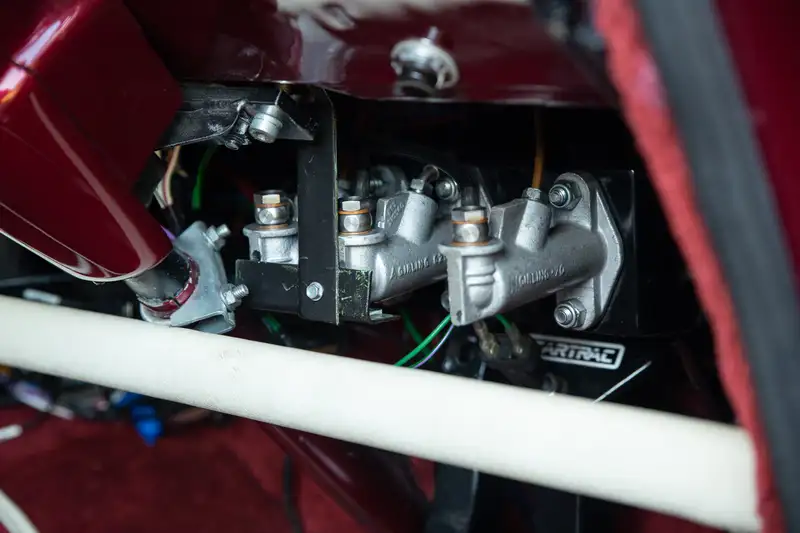

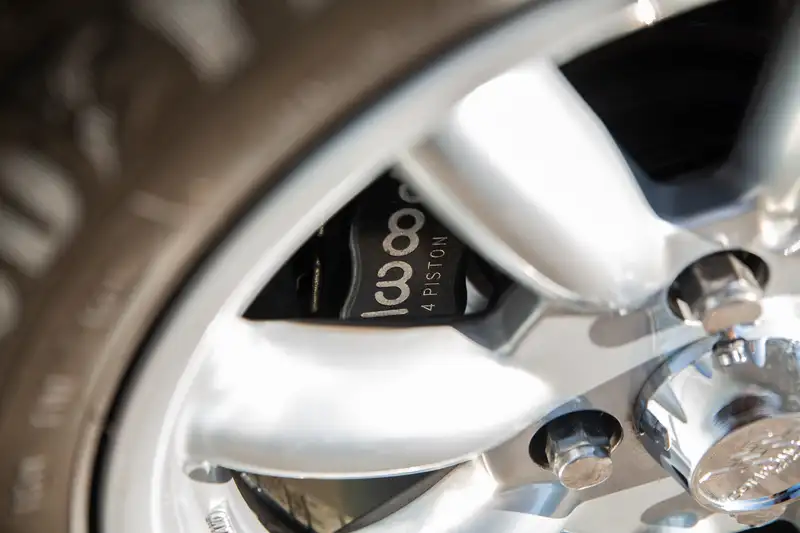

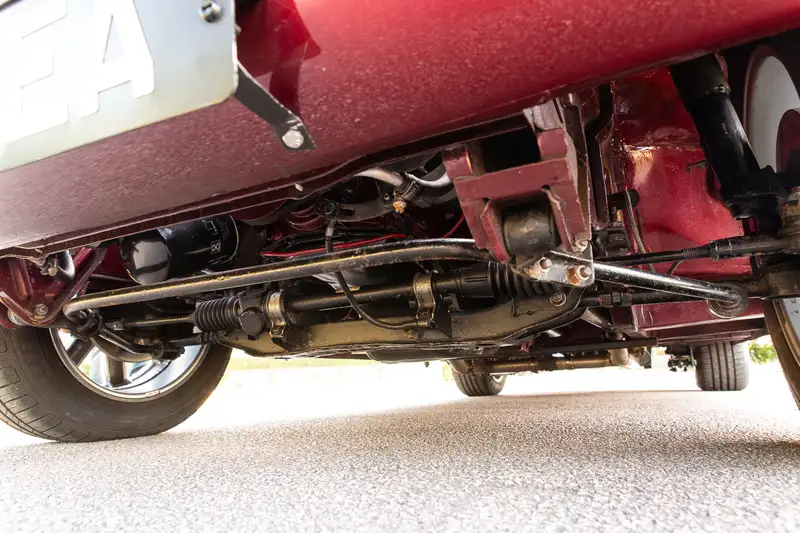

The front end has been fitted with a modified Ford Escort crossmember and rack and pinion steering. Capri Mk 2 adjustable shock absorbers have been converted to 2 1/4 inch coil overs and are adjustable for ride height . Brakes are 4 pot Wilwood calipers on the front with 10 inch drums at the rear, all brakes being operated via a twin hydraulic system. The fully adjustable front geometry has been optimally set up by a specialist. The car weighs 1100kg, with a 50:50 front : back weight distribution which gives it wonderfully balanced handling.

Electrics

Minor:

Major:

Vehicle History

About the Seller Rating

A lot's rating is compiled based on information provided by the seller of the lot. We strongly recommend viewing a lot prior to bidding as we cannot guarantee the accuracy of the information provided by the seller. We will not entertain any disputes over seller rating details.

Poor Numerous faults / Extensive damage / Many missing parts / Project or donor car

Fair Basic condition / Requires attention mechanically & cosmetically / Some damage / Some missing parts

Good Everyday useable classic car / Driven & enjoyed / Commensurate with age & mileage / Drives and looks as it should / Some vehicle history

Very good Almost pristine / Mechanically & cosmetically sound / Driven only occasionally / Extensive vehicle history

Excellent Pristine / Original / Documented nut & bolt ground-up restoration / Stored professionally / Trailered only / Complete vehicle history
